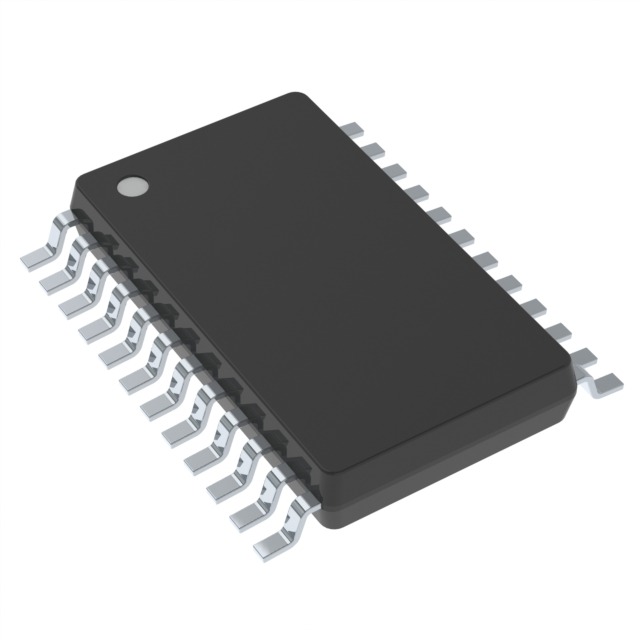

Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator

Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator

AD9850BRSZ-REEL DDS synthesizer with a 32-bit tuning word, internal 10-bit DAC and comparator for square-wave clock output.

The Analog Devices AD9850BRSZ-REEL is a direct digital synthesis (DDS) frequency synthesizer for programmable sine-wave generation. It uses a 32-bit frequency tuning word and an internal 10-bit DAC. A built-in comparator can turn the signal into a square-wave clock output.

Its digital phase control supports phase shifts, while the serial or parallel programming interface gives designers two ways to set operating values. The device also has a power-down function. These features help combine signal generation and clock output in one component.

Use this DDS synthesizer with comparator in agile local oscillator designs, digital communication clock recovery and locking circuits, or digitally controlled ADC encode generation.

DNA stocks Analog Devices parts in MISC ANALOG IC's for design, repair and production needs. Browse this category for components used in signal generation and related analog circuits. Check other MISC ANALOG IC's that we have in stock

For Indian electronics buyers, DNA offers retail and bulk support, plus import support for hard-to-find parts. Contact us if you need a Microcontroller, Sensor, Inductor, Connectors, Hongfa Relay or Crystal. Contact Us

Features of Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator

• Generates digitally programmable sine waves
• Comparator provides a square-wave clock output
• Supports digital phase modulation
• Offers serial and parallel programming options
• Includes a power-down function

Specifications of Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator

• Reference clock input: 1 MHz to 125 MHz at 5 V
• Maximum output frequency: Up to half the reference clock frequency
• Frequency tuning word: 32 bits
• Frequency tuning resolution: 0.0291 Hz with a 125 MHz reference clock
• Phase modulation: 5 bits, with shifts in increments of 180°, 90°, 45°, 22.5° and 11.25° or combinations
• DAC resolution: 10 bits
• Operating temperature: −40°C to +85°C
• Package: 28-lead SSOP, package option RS-28

Applications of Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator

• Frequency- and phase-agile sine-wave synthesis
• Clock recovery and locking circuitry for digital communications
• Digitally controlled ADC encode generation
• Agile local oscillator applications

Related Links for Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator

• Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator Datasheet

• Other Products from MISC ANALOG IC's Category

Package Includes

• 1 X Analog Devices AD9850BRSZ-REEL DDS Frequency Synthesizer with Comparator
