Product Images are shown for illustrative purposes only and may differ from actual product.

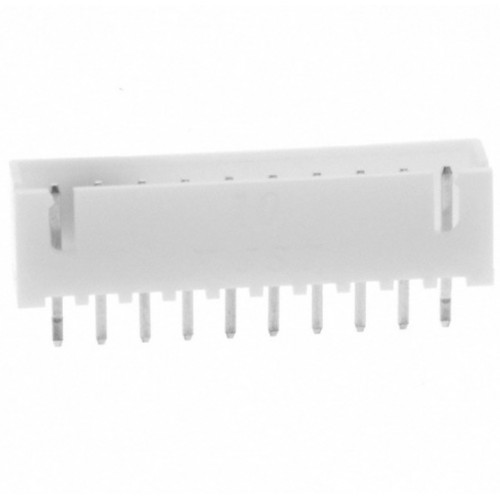

B10B-XH-A Connector Header


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-05

  • Brand: Generic
  • SKU: 8088 | DAH139

Availability: NotInStock priceValidUntil: 2026-11-05

  • Rs. 3.78 (inc GST)
    Rs.3.20 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

JST B10B-XH-A Connector Header - 10 Position Wire-to-Board

B10B-XH-A Connector Header with 10 positions, 2.5mm pitch, designed for secure wire-to-board connections.

The JST B10B-XH-A Connector Header is a reliable 10-position header designed for wire-to-board connections. Its 2.5mm pitch ensures a compact design, ideal for PCB assemblies and industrial control systems. The four-wall shrouded design provides secure mating, making it suitable for automotive and consumer electronics applications.

This connector features a through-hole mounting style and is made from durable materials. The brass contact pins are tin-plated for enhanced conductivity, while the insulation is crafted from polyamide (PA66) with a flammability rating of UL94 V-0. The B10B-XH-A Connector Header operates effectively within a temperature range of -25°C to +85°C, accommodating various environmental conditions.

For applications in communication equipment and industrial systems, the B10B-XH-A Connector Header offers a reliable connection with a current rating of 3A and a voltage rating of 250V. Explore our selection of connectors to find the perfect fit for your electronic projects.

Explore high-quality connectors and cables at DNA solutions. Check other "Connectors and Cables" that we have in stock.

If you need more electronic components, contact us. We can import parts and support retail and bulk orders. Explore items like Hongfa Relay, Microcontroller, Transistor, and Capacitor. Contact Us.

Features of JST B10B-XH-A Connector Header

  • 10 positions
  • 2.5mm pitch
  • Four-wall shrouded design
  • Brass contact with tin plating
  • UL94 V-0 flammability rating
  • Operating temperature -25°C to +85°C

Specification of JST B10B-XH-A Connector Header

  • Number of Positions: 10
  • Pitch: 2.5mm
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Insulation Height: 7.0mm
  • Contact Length: 3.4mm

Applications of JST B10B-XH-A Connector Header

  • PCB assemblies
  • Industrial control systems
  • Consumer electronics
  • Automotive electronics
  • Communication equipment

Package Includes

  • 1 X JST B10B-XH-A Connector Header
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
