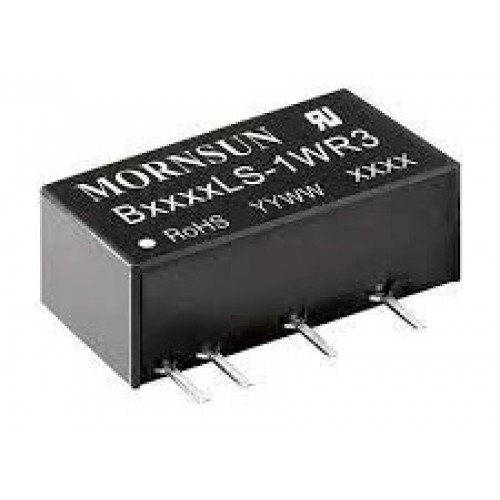

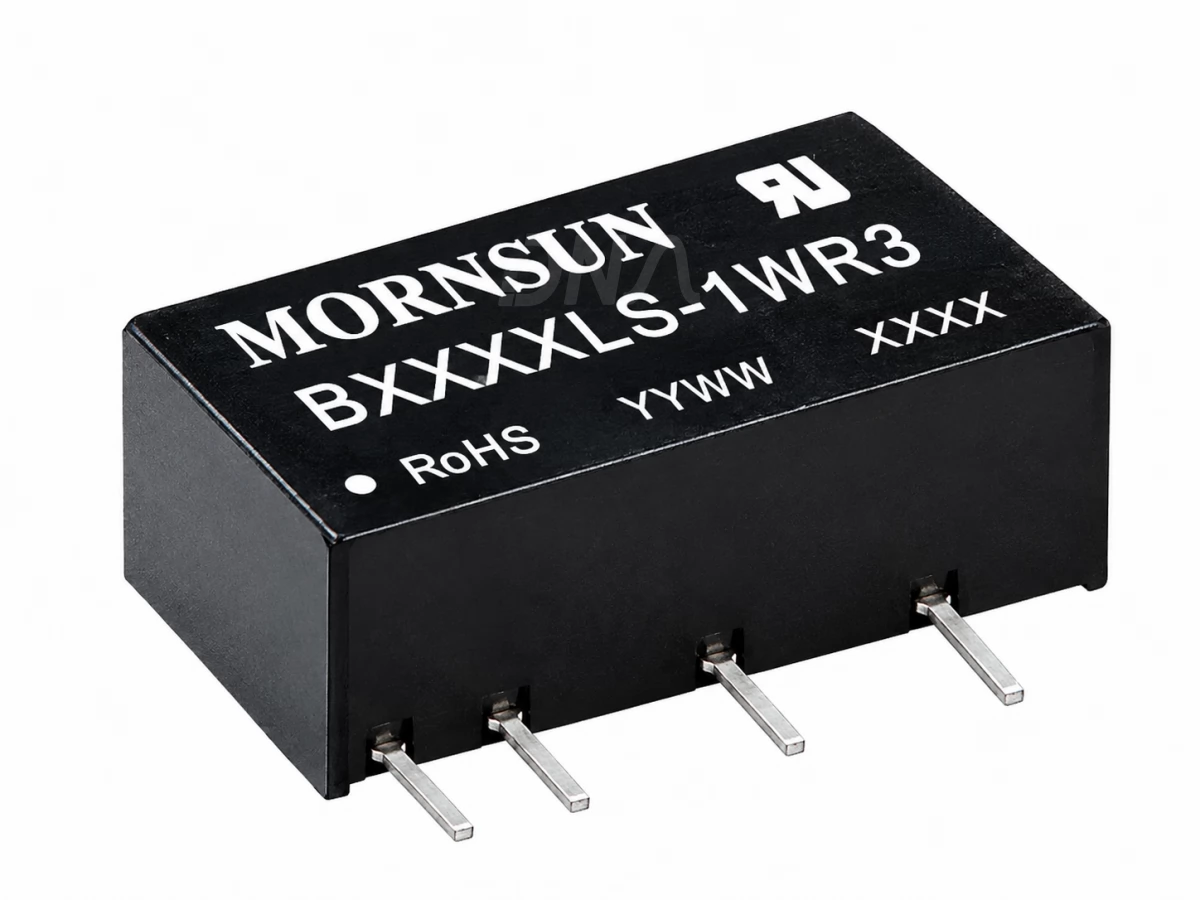

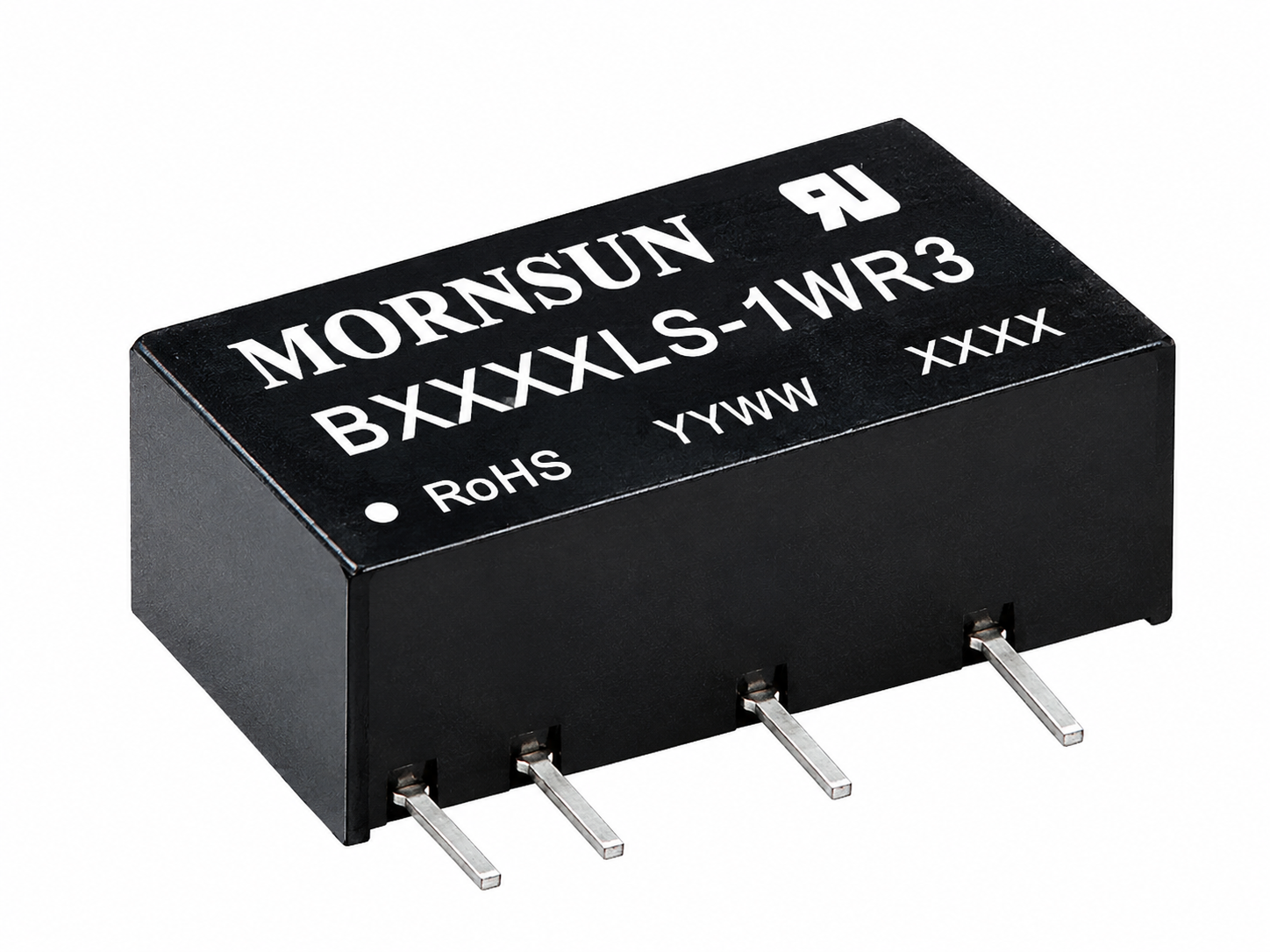

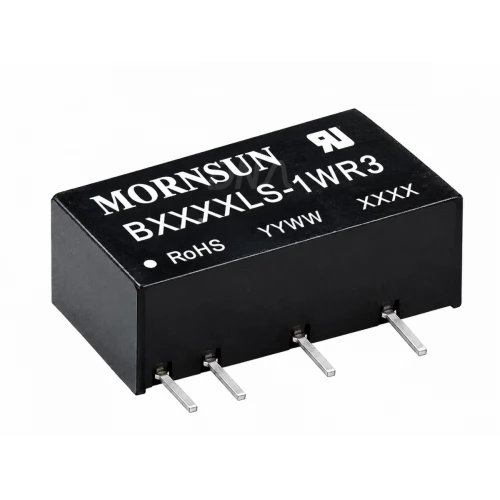

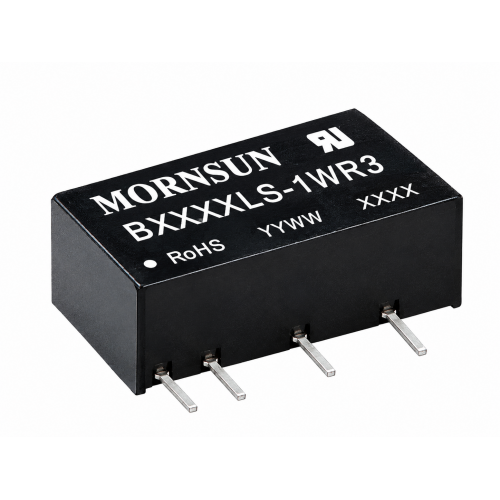

MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module

Name: MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module
Brand: Mornsun
SKU: DAG490
Price: 162.37 INR
Availability: InStock
Rating: 4 (1 reviews)

Write a review | 1 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-11-15
Brand: Mornsun
SKU: 7509 | DAG490

Rs. 162.37 (inc GST)
Rs.137.60 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module

B2405LS-1WR3 is a 1 W isolated DC-DC converter with a 24 VDC nominal input and a single unregulated 5 VDC output.

The MORNSUN B2405LS-1WR3 is a 1 W isolated DC-DC converter module. It converts a nominal 24 VDC input to a single 5 VDC output. The output is unregulated, so allow for output variation when choosing the load and circuit design.

Input-to-output isolation separates the two sides of the power circuit. The module also has continuous, self-recovering short-circuit protection, which helps it resume operation after a short circuit clears. Its compact through-hole design suits boards with limited space.

Use this module in pure digital circuits, low-frequency analog circuits, relay-driven circuits or data-switching circuits that need a low-power isolated supply.

DNA stocks MORNSUN power modules for electronics buyers in India. Explore our DC to DC Converter Modules range for your design and sourcing needs. Check other DC to DC Converter Modules that we have in stock

If you cannot find a part, contact DNA for import support and retail or bulk orders. We can also help you source IGBT, Resistor, Crystal, Inductor, Digital IC and Connector products. Contact Us

Features of MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module

Input-to-output isolation
Continuous, self-recovering short-circuit protection
Single-output conversion
Through-hole pin layout

Specifications of MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module

Input voltage: 24 VDC nominal
Output voltage: 5 VDC, unregulated single output
Output current: 20 mA minimum to 200 mA maximum
Output power: 1 W
Full-load efficiency: 73% minimum, 79% typical
Input-to-output isolation test voltage: 1500 VDC for 1 minute, 1 mA maximum leakage current
Dimensions: 19.65 × 6.00 × 10.16 mm

Applications of MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module

Pure digital circuits
Low-frequency analog circuits
Relay-driven circuits
Data-switching circuits

Package Includes

1 X MORNSUN B2405LS-1WR3 1 W Isolated DC-DC Converter Module
