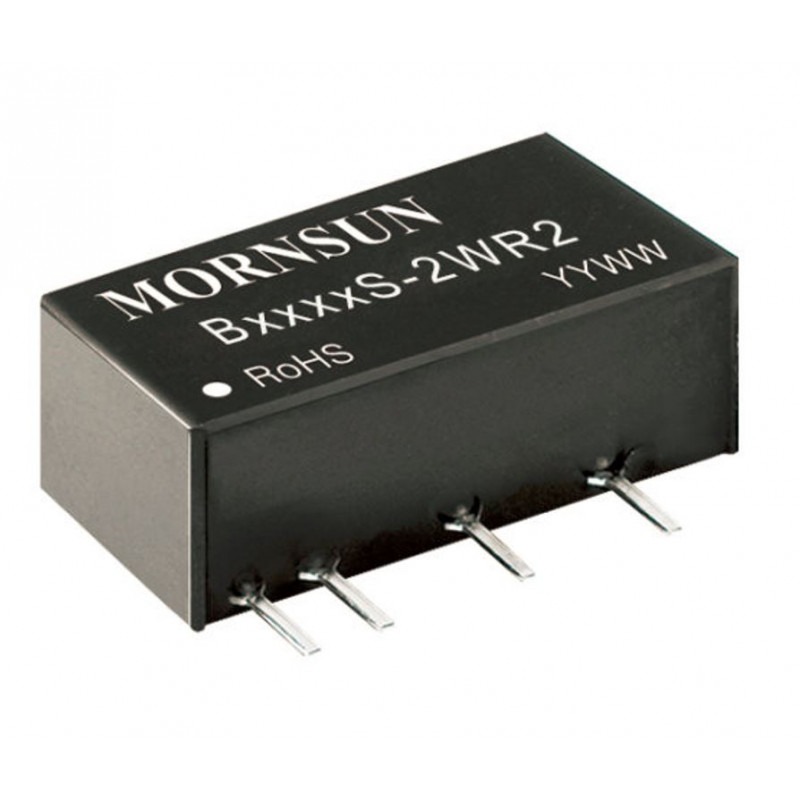

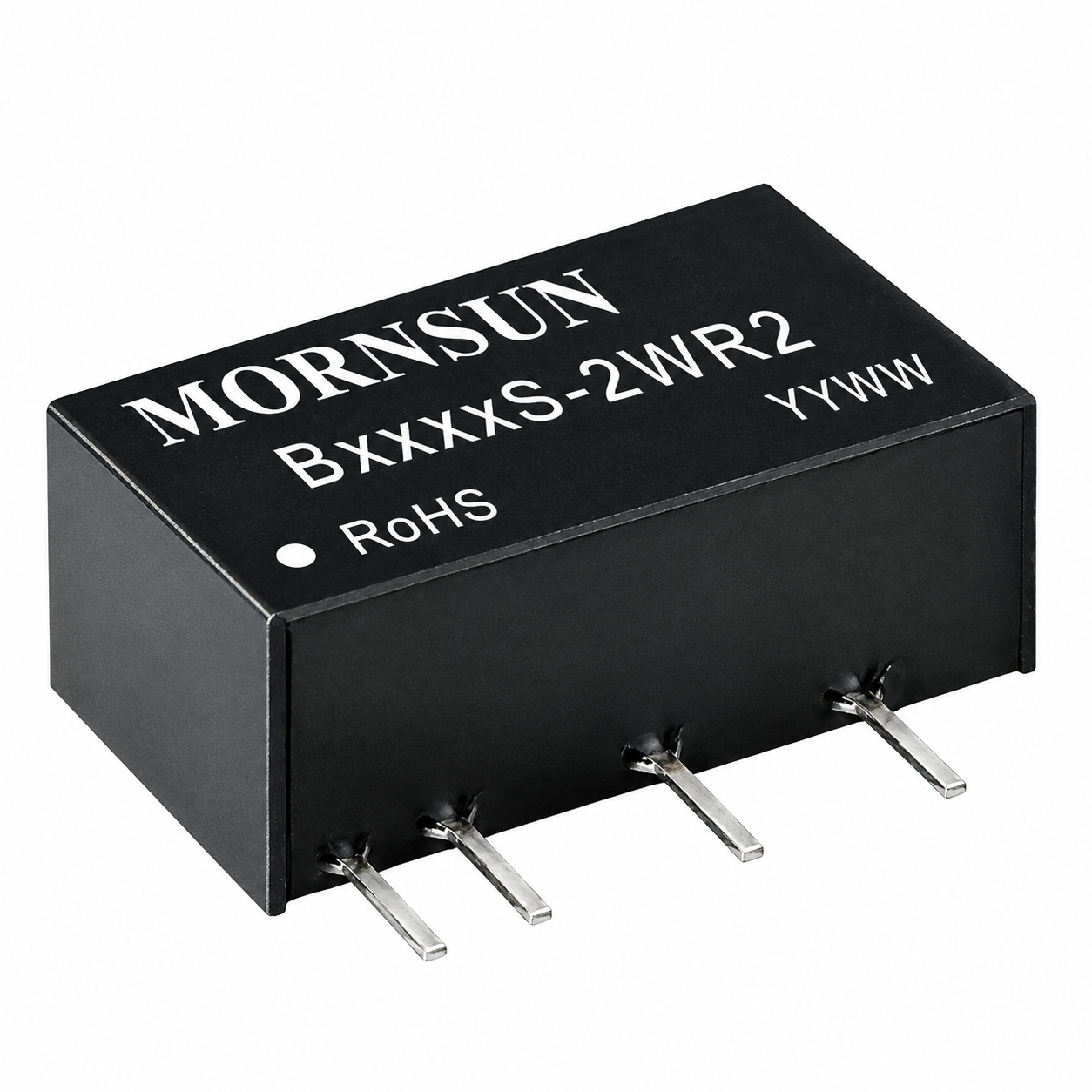

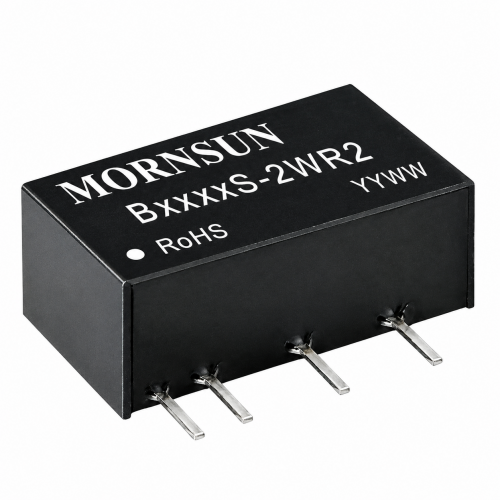

Mornsun B2412S-2WR2 Isolated 2W DC/DC Converter Module

Stock: 9
Availability: InStock priceValidUntil: 2026-11-23
Brand: Mornsun
SKU: 5010 | DAG732

Rs. 389.87 (inc GST)
Rs.330.40 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mornsun B2412S-2WR2 Isolated 2W DC/DC Converter Module

Mornsun B2412S-2WR2 converts 24 VDC input to a 12 VDC, 2 W isolated output in a miniature SIP package.

The Mornsun B2412S-2WR2 is an isolated DC/DC converter module that changes a nominal 24 VDC input to a single, unregulated 12 VDC output at 2 W. It suits designs that need 24 VDC to 12 VDC conversion with input-to-output isolation.

Its miniature SIP package helps fit the converter into compact equipment. Basic operation needs no external components, and short-circuit protection adds a response to output faults. The unregulated output and 10% minimum load are important design points when selecting it for a circuit.

Use this module in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits. Its isolated output can support separate power domains within these designs.

DNA stocks Mornsun DC to DC Converter Modules for electronics projects and production needs. Explore this isolated 2 W converter and other options in the range. Check other DC to DC Converter Modules that we have in stock

Indian electronics buyers can contact DNA if they cannot find a required part. We offer import support and retail or bulk supply. Ask us about related items such as Sensor Modules, Programmers, LCDs, Capacitors, Crystals and Development boards. Contact Us

Features of Mornsun B2412S-2WR2 Isolated 2W DC/DC Converter Module

Input-to-output isolation separates the input and output power domains
Single-output design for compact power conversion
Miniature SIP construction supports space-conscious layouts
No external components needed for basic operation
Short-circuit protection supports response to output faults

Specifications of Mornsun B2412S-2WR2 Isolated 2W DC/DC Converter Module

Input voltage range: 21.6–26.4 VDC
Output voltage: 12 VDC, unregulated
Output current: 17 mA minimum and 167 mA maximum
Rated output power: 2 W
Full-load efficiency: 80% minimum, 84% typical at nominal input voltage
Input-to-output isolation voltage: 1500 VDC minimum for a 1-minute electric strength test
Operating temperature: -40°C to +105°C, with derating above 85°C
Package and dimensions: SIP, 19.65 × 7.05 × 10.16 mm

Applications of Mornsun B2412S-2WR2 Isolated 2W DC/DC Converter Module

Pure digital circuits
Low-frequency analog circuits
Relay-driven circuits
Data switching circuits

Package Includes

1 X Mornsun B2412S-2WR2 Isolated 2W DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
