CN3303 PFM Boost Three Cell Lithium Battery charging control IC

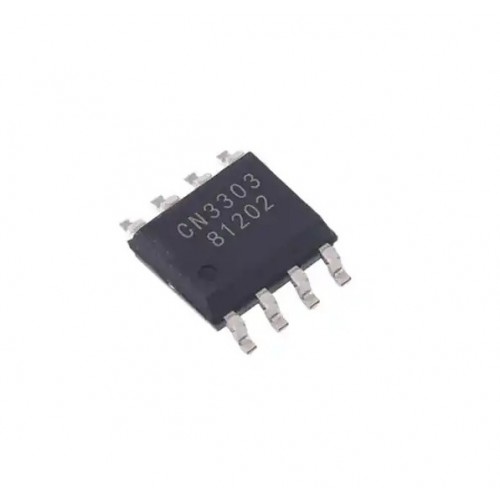

CN3303 PFM Step-up 3-cell USB Compatible Lithium Battery Charger IC - SOP8

CN3303 is a PFM boost type three-phase converter operating from 2.7V to 6.5V. Lithium-ion battery charging control integrated circuit. CN3303 adopts constant current and Quasi-constant voltage mode (Quasi-CVTM) performs charge management on the battery. Internally integrated reference voltage source, inductor current detection unit, battery Voltage detection circuit and off-chip field effect transistor drive circuit, etc. It has the advantages of fewer external components and simple circuit.

When the battery voltage is lower than the input voltage or the battery is short-circuited, CN3303 the joint operation of off-chip N-channel MOSFET and P-channel MOSFET After use, continue to charge the battery with a smaller current, which will have a positive effect on the battery.

DNA solutions, Nashik has various types of Battery Charging IC. Check out our complete collection of Litinum Ion Charger IC's

• Operating Current：280uA@VIN=5V


• Inductor Current Detection


• Switching Frequency up to 1MHz


• Quasi-CV mode to Compensate for the Voltage Loss on Battery Internal Resistance and Trace Resistance


• Protection for Low Battery Voltage and Short Battery


• Input Voltage Range：2.7V to 6.5V


• Automatic Adaptability to Input Supply with Limited Driving Capability


• Chip Enable Input


• Battery Overvoltage Protection


• Status Indication


• Operating Temperature ：－40℃ to 85℃


• Available in SOP8 Package


• Input Voltage Range：2.7V to 6.5V


• Output Power up to 35W


Package Includes

1 x CN3303 PFM boost three-cell lithium battery charging control IC
