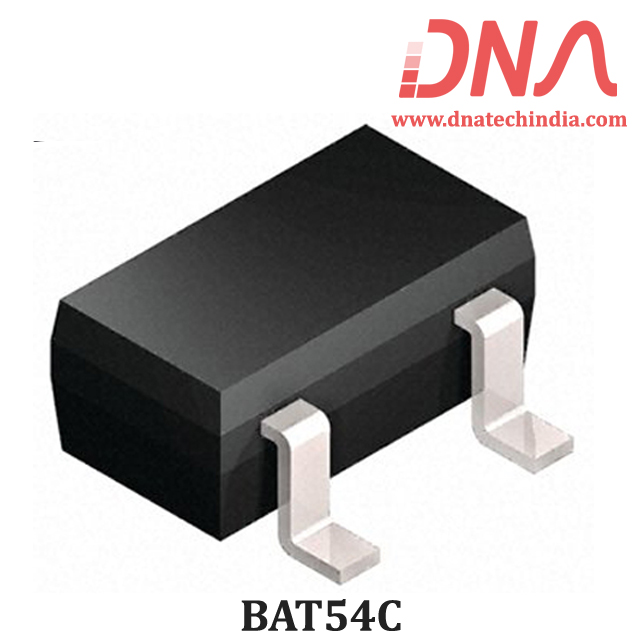

BAT54C Schottky Diode

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-08-30
SKU: 2707 | DAE226

Rs. 4.72 (inc GST)
Rs.4.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

BAT54C Small Signal Schottky Diode

BAT54C Schottky Diode with low turn-on voltage, fast switching, and SOT23 package.

The BAT54C Small Signal Schottky Diode is designed for high-speed switching applications. It features a low turn-on voltage of 0.8 volts and a maximum reverse voltage of 30 volts, making it ideal for voltage clamping and reverse polarity protection. Encapsulated in a compact SOT23 package, this diode is suitable for surface-mounted device (SMD) applications. The integrated guard ring provides protection against electrostatic discharges, ensuring reliability in various electronic circuits.

Applications of the BAT54C Small Signal Schottky Diode include ultra high-speed switching and line termination. With a forward current rating of 0.2 amperes and a forward surge current of 0.6 amperes, it meets the demands of modern electronic designs. The diode operates effectively in temperatures ranging from -55°C to +150°C, ensuring performance in diverse environments.

For those in Nashik, the BAT54C Small Signal Schottky Diode is available at our local shop or through online orders for convenient delivery across India. Explore our extensive range of diodes and enhance your electronic projects today.

Explore the world of Diodes & Transistors at DNA. The BAT54C is a reliable Schottky diode essential for your electronic projects. Check other Diodes & Transistors that we have in stock.

If you need more electronic components, reach out to us. We can help you find parts like Nextion Displays, Capacitors, Diodes, Digital ICs, and Transistors. We can also import items not in stock and support both retail and bulk orders. Contact Us

Features of BAT54C Small Signal Schottky Diode

Low turn-on voltage
Fast switching speed
Integrated guard ring for protection

Specification of BAT54C Small Signal Schottky Diode

Mounting Style: SMD/SMT
Package/Case: SOT-23
Configuration: Dual Common Cathode
Forward Current: 0.2 A
Repetitive Reverse Voltage: 30 V
Forward Voltage: 0.8 V
Forward Surge Current: 0.6 A
Reverse Current: 2 µA at 25 V
Operating Temperature: -55°C to +150°C

Applications of BAT54C Small Signal Schottky Diode

Ultra high-speed switching
Line termination
Voltage clamping
Reverse polarity protection

Package Includes

1 X BAT54C Small Signal Schottky Diode
