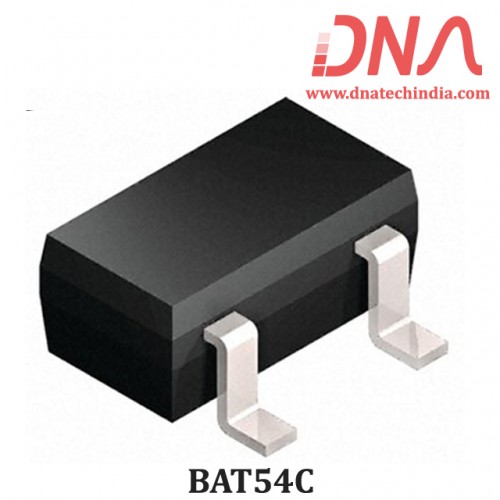

BAT54C Schottky Diode

Name: BAT54C Schottky Diode
SKU: DAE226
Price: 4.72 INR
Availability: OutOfStock

Write a review | 0 reviews

Stock: Out Of Stock

SKU: 2707 | DAE226

Rs. 4.72 (inc GST)
Rs.4.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

BAT54C Small Signal Schottky Diode

BAT54C Schottky barrier diode in SOT23 Package

BAT54C is a Small Signal Schottky Diodes with an integrated guard ring for stress protection, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

BAT54C diode has a very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.

We have Various sizes of General and Schottky Diodes. Check out our complete collection of Diode.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification of BAT54C Schottky Diode

Product : Schottky Diodes
Mounting Style : SMD/SMT
Package/Case : SOT-23
Configuration : Dual Common Cathode
Technology : Si
If - Forward Current : 0.2 Ampere
Vrrm - Repetitive Reverse Voltage : 30 Volts
Vf - Forward Voltage : 0.8 Volts
Ifsm - Forward Surge Current : 0.6 Ampere
Ir - Reverse Current : 2 uA at 25 V
Minimum Operating Temperature : - 55 C
Maximum Operating Temperature : + 150 C

Applications of BAT54C Schottky Diode

Ultra high-speed switching
Line termination
Voltage clamping
Reverse polarity protection

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
