• BTS7960 High Current PN Half Bridge IC (TO263)

Product Images are shown for illustrative purposes only and may differ from actual product.

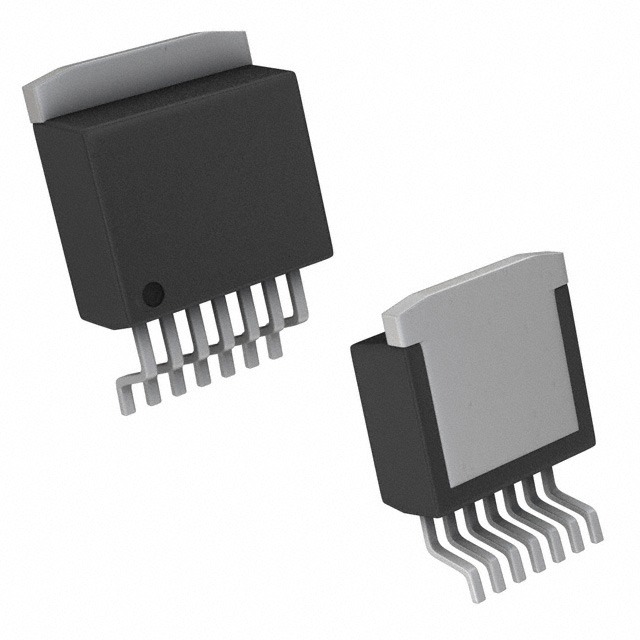

BTS7960 High Current PN Half Bridge IC (TO263)

  • Stock: 15
  • SKU: 7352 | DAG109
  • Rs. 336.30 (inc GST)
    Rs.285.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

BTS7960 High Current PN Half Bridge IC (TO263)

BTS7960 High Current PN Half Bridge IC (TO263)

The BTS7960 is a fully integrated high current half bridge for motor drive applications. It is part of the Novalith IC TM family containing one p-channel high side MOSFET and one n-channel low side MOSFET with an integrated driver IC in one package. Due to the p-channel high side switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, under voltage, overcurrent and short circuit.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of BTS7960 High Current PN Half Bridge IC (TO263)

  • High-current half-bridge driver for DC motor control
  • Capable of driving up to 43A continuous current
  • Low RDS(on) for high efficiency
  • PWM capability of up to 25 kHz combined with active freewheeling
  • Switched mode current limitation for reduced power dissipation in overcurrent
  • Current limitation level of 43 A type.
  • Status flag diagnosis with current sense capability

Specifications of BTS7960 High Current PN Half Bridge IC (TO263)

  • Supply Voltage (VS): 5.5V to 27V
  • Logic Input Voltage (VIN): 3.3V to 5V (TTL/CMOS compatible)
  • Continuous Current (IC): Up to 43A
  • Peak Current: 80A (for short periods)
  • RDS(on) High-Side Switch: 16 mΩ (typical)
  • RDS(on) Low-Side Switch: 16 mΩ (typical)

    Package Includes

    • 1 x BTS7960 High Current PN Half Bridge IC (TO263)

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
