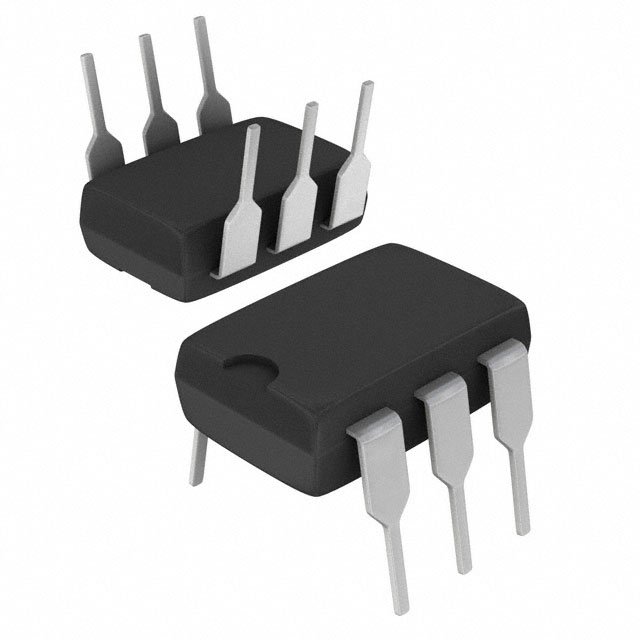

SFH601-3 Optoisolator Transistor DIP IC

SFH601-3 Optoisolator Transistor DIP IC for Signal Isolation

SFH601-3 Optoisolator DIP IC offers high CTR, reliable isolation, and fast switching in a compact package.

The SFH601-3 Optoisolator Transistor DIP IC provides efficient signal isolation in various electronic applications. It features an infrared emitting diode optically coupled to a silicon NPN phototransistor, ensuring high current transfer ratios (CTR) and excellent isolation between input and output circuits. This component is ideal for microprocessor input interfaces, switching power supplies, and data communication interfaces, making it versatile for both industrial and consumer electronics.

With a compact DIP package, the SFH601-3 Optoisolator allows for easy integration into through-hole PCB designs. Its fast switching performance and low input current requirement enhance its reliability for signal isolation in industrial controls. The SFH601-3 Optoisolator Transistor is designed to meet the demands of modern applications requiring electrical isolation and noise immunity.

For engineers and hobbyists in India, the SFH601-3 is a dependable choice for enhancing circuit reliability. Explore our range of Optoisolator ICs to find the perfect fit for your projects.

Explore our range of high-quality OptoCouplers & OptoIsolators at DNA. We stock top products from leading manufacturers. Check other OptoCouplers & OptoIsolators that we have in stock.

If you are looking for specific electronic components in India, reach out to us. We can help you find parts like Transistors, Analog ICs, Sensors, and more. We also support both retail and bulk orders. Contact Us

Features of SFH601-3 Optoisolator Transistor DIP IC

• High current transfer ratio (CTR)
• Compact DIP package for easy mounting
• Good isolation voltage
• Fast switching speed
• Low input current requirement

Specification of SFH601-3 Optoisolator Transistor DIP IC

• Input type: Infrared emitting diode
• Output type: NPN phototransistor
• Isolation voltage: 5000 Vrms
• Current transfer ratio: 100% – 200%
• Collector-emitter voltage: 70 V
• Forward current: 60 mA max

Applications of SFH601-3 Optoisolator Transistor DIP IC

• Signal isolation in industrial controls
• Switching power supplies
• Microprocessor input interfaces
• Data communication interfaces

Related Links for SFH601-3 Optoisolator Transistor DIP IC for Signal Isolation

• Other Products from OptoCouplers & OptoIsolators Category

Package Includes

• 1 X SFH601-3 Optoisolator Transistor DIP IC
