APM POWER MODULE WITH XT60 CONNECTOR


Write a review | 2 reviews

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-09-18

  • Brand: Generic
  • SKU: 1891 | DAC304

Availability: InStock priceValidUntil: 2026-09-18

  • Rs. 698.56 (inc GST)
    Rs.592.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

APM POWER MODULE WITH XT60 CONNECTOR

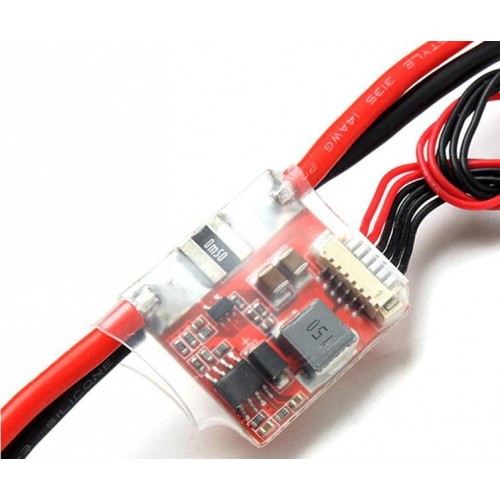

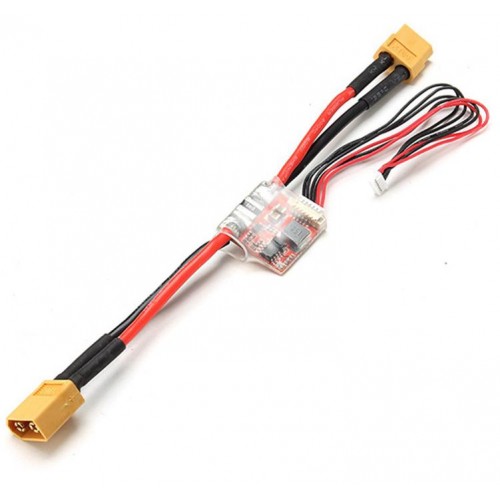

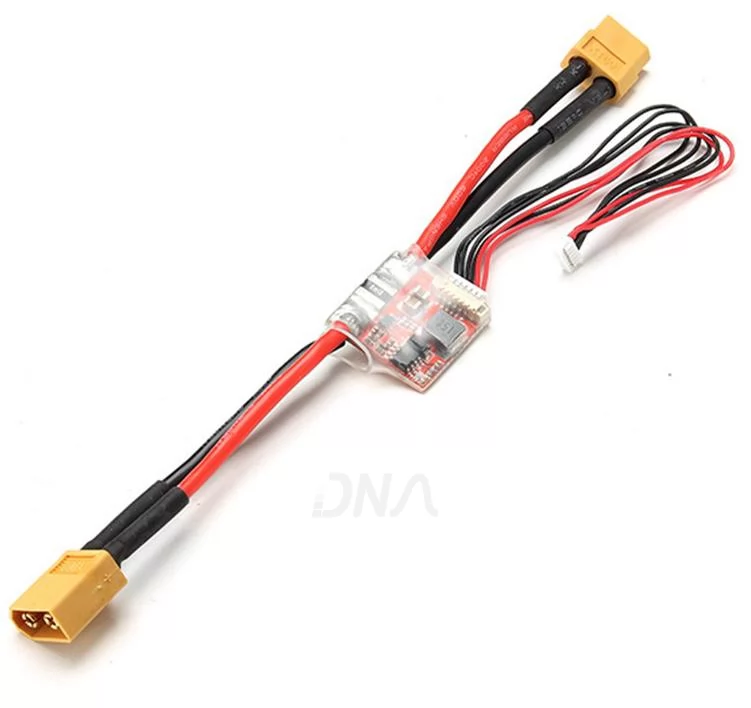

 The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

The APM Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery.

DNA solutions, Nashik has various types of Drones and Quadracopter's. Check out our complete collection of  Drones and Quadracopter's.

Specifications  Of APM POWER MODULE WITH XT60 CONNECTOR

  • Max input voltage : 28V
  • Max current sensing : 90A
  • Voltage and current measurement configured for 5V ADC
  • Switching regulator outputs 5.3V and 2.25A max
  • 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
  • Support 6S battery.

Applications Of APM POWER MODULE WITH XT60 CONNECTOR

  • It is used in APM.
  • It is used in RC receiver.
  • It is used in GPS.
  • It is used in 3DR Radio

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
