Q450 Quadcopter Frame

Q450 Quadcopter Frame

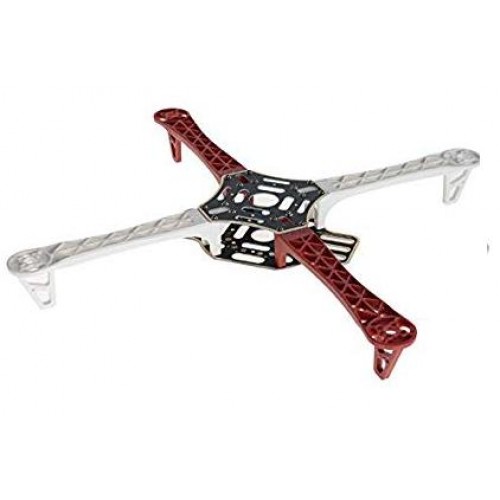

The Q450 Frame is the most common frame for making a Quadracopter.

Q450 Quadracopter frame is sturdy 450 mm frame made out of glass fiber thus making it tough, durable as well as light weight at the same time.

Q450 Quadracopter frame arms are made of ultra-durable Polyamide Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight. The frame has the wheelbase of 450mm and weighs around 320gm. It features mounting tabs at the front and rear end on the bottom plate of the main frame for mounting cameras and other accessories.

The landing gear has the ground clearance of 200mm and allows the mounting of the camera and other accessories at the bottom of the mainframe. The Plastic Landing Gear can withstand sudden crashes during flying of FPV Quadcopters.

The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and other electronic components The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the main frame is done within few minutes.  Also, it requires one size of bolt for the overall build and thus a unique one size hex wrench which makes hardware mounting very convenient. This feature of Q450 Quadcopter Frames makes them so easy to assemble and disassemble.

DNA solutions, Nashik has various types of Drones and Quadracopter's. Check out our complete collection of  Drones and Quadracopter's.

Features Of Q450 Quadcopter Frame

• Made by advanced engineering material, super strong & smooth

• Easy to assemble and disassemble.

• The frame is tough and durable.

• The main glass fiber frame has good strength.

• The arm equips support ridges for better and faster forward flight.

• Features pre-threaded brass sleeves.

• Large mounting tabs for camera mounting.

• In-built power distribution board.

Specifications Of Q450 Quadcopter Frame

• Model : Q450

• Material : Glass Fiber + Polyamide Nylon

• Wheelbase (mm) : 450

• Weight (gm) : 330 (Q450 Frame)

• Arm Size (mm) : 220 x 40 (LxW)

• Motor Mounting Hole Dia. (mm) : 3
