Product Images are shown for illustrative purposes only and may differ from actual product.

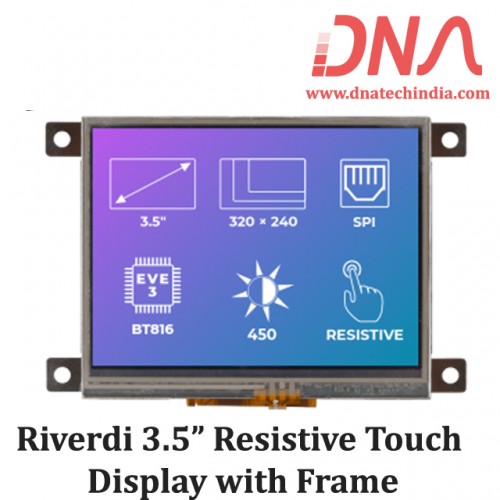

Riverdi 3.5” Resistive Touch Display with Frame
-
Rs. 5,593.20 (inc GST)
Rs.4,740.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
RiTFT-35-RES-FR 3.5 Inch Resistive Touch Display with Frame Mounting
Riverdi EVE Touch Screen Display with 3.5” Resistive Touch and easy frame mounting
RiTFT-35-RES-FR is a 3.5″ TFT display with a resistive touchscreen based on Bridgetek BT81x controllers consists of a metal mounting frame, and a built-in LED inverter. The 320×240 resolution provides crisp and clear colors, while the screen is driven by the powerful BT815 graphics controller. Riverdi EVE Series RiTFT-35-RES-FR features the standard SPI/QSPI interface.

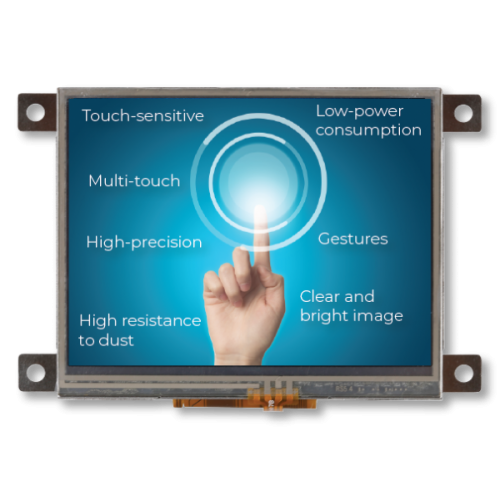

Riverdi Resistive Touchscreens are well-suited for more robust environments. Resistive Touchscreens have a high resistance to dust and other elements and they can be used even with gloved hands. Resistive touch screens also have low-power consumption and are suitable for battery powered devices.
We have Various sizes of Riverdi Display. Check out our complete collection of Riverdi Display.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features for RiTFT-35-RES-FR Touch Display
- Model Number : RVT35AHBFWR00
- Weight : 68 grams
- Active area : 70.08×52.56mm
- Dimensions : 77.70×64.70×8.40mm
- Operating temp : '-20~70'(°C)
- Dot pitch : 0.73×0.219 (mm2)
- LCD type : TFT
- Input Voltage : 3.3 Volts
- Viewing direction : 12:00 o'clock
- Gray Scale Inversion Direct : 6:00 o'clock
- Backlight Type : 6 LEDs
- Pixel Arrangement : RGB Vertical Stripe
- Controller : BT816
- Resolution : 320×240
- Size : 3.5 inch
- Brightness : 450 (cd/m²)
- Touch Screen : Resisitve
- Interfaces : SPI/QSPI
- Driver IC : NV3035C
Downloads
Technical Details
