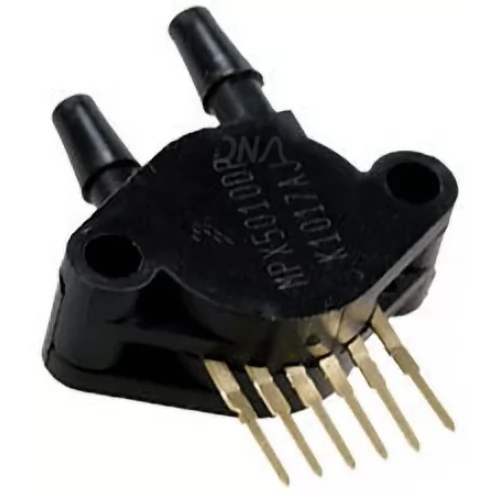

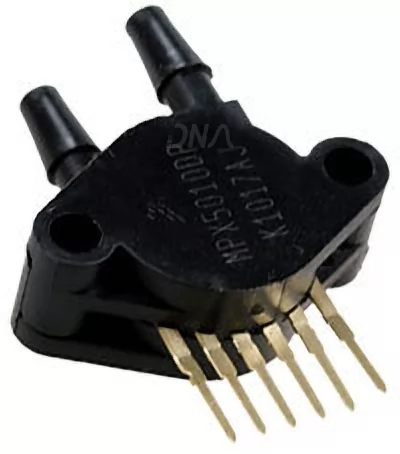

MPX5010DP Pressure Transducer

MPX5010DP Integrated Silicon Pressure Sensor with On-Chip Signal Conditioned,Temperature Compensated and Calibrated

The MPX5010 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. MPX5010 transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure. The axial port has been modified to accommodate industrial grade tubing.

Features of MPX5010DP Pressure Sensor

• 5.0% Maximum Error over 0 to 85C

• Ideally Suited for Microprocessor or Microcontroller-Based Systems

• Durable Epoxy Unibody and Thermoplastic (PPS) Surface Mount Package

• Temperature Compensated over -40 to +125C

• Patented Silicon Shear Stress Strain Gauge

• Available in Differential and Gauge Configurations

• Available in Surface Mount (SMT) or Through-hole (DIP) Configurations

Application of MPX5010DP Pressure Sensor

• Hospital Beds

• HVAC

• Respiratory Systems

• Process Control

• Washing Machine Water Level Measurement

• Ideally Suited for Microprocessor or Microcontroller-Based Systems

• Appliance Liquid Level and Pressure Measurement

Related Details

• MPX5010DP Pressure Sensor Datasheet


Package Includes

• 1 x MPX5010DP Pressure Sensor
