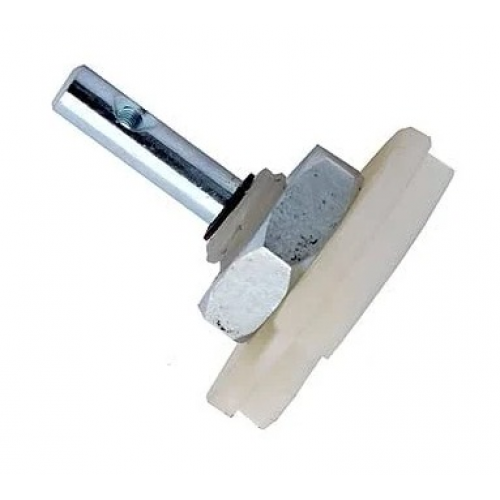

DUMMY SHAFT

DUMMY SHAFT

A Dummy Motor Shaft is a non-powered, static shaft designed to simulate the position and dimensions of a real motor shaft. It is used in applications where shaft alignment, mounting, or fit testing is needed without requiring actual motor operation. Common in prototyping, mechanical testing, and training setups, it helps ensure proper coupling and component placement. Made from durable materials like steel or aluminum, with optional keyways or threads to match operational shafts. Cost-effective and ideal for verifying mechanical design before final motor installation.

DNA solutions, Nashik has various types of Dummy Shaft's. Check out our complete collection of Dummy Shaft's.

• Includes a non-rotating or non-powered shaft

• Simulates actual motor installation geometry

• Maintains alignment for couplings, gears, or belts

• Reduces cost in testing environments where actual motor function isn’t needed

• May have identical external dimensions as the real motor for design verification.

Specifications of DUMMY SHAFT

• Motor Frame: IEC/NEMA standard or custom

• Dummy Shaft Material: Stainless steel/aluminum

• Shaft Diameter: 6 mm to 25 mm

• Shaft Type: Round/keyed/threaded

• Mounting Type: Flange/Foot/Custom

• Body Material: Aluminum/Steel/Plastic

• Use Case: Fitment, balance, or load simulation.

Applications of DUMMY SHAFT

• Mechanical alignment during machine assembly

• Simulation of motor load positions

• Gearbox or pulley test setups

• Training and education setups

Package Includes

      1 x DUMMY SHAFT
