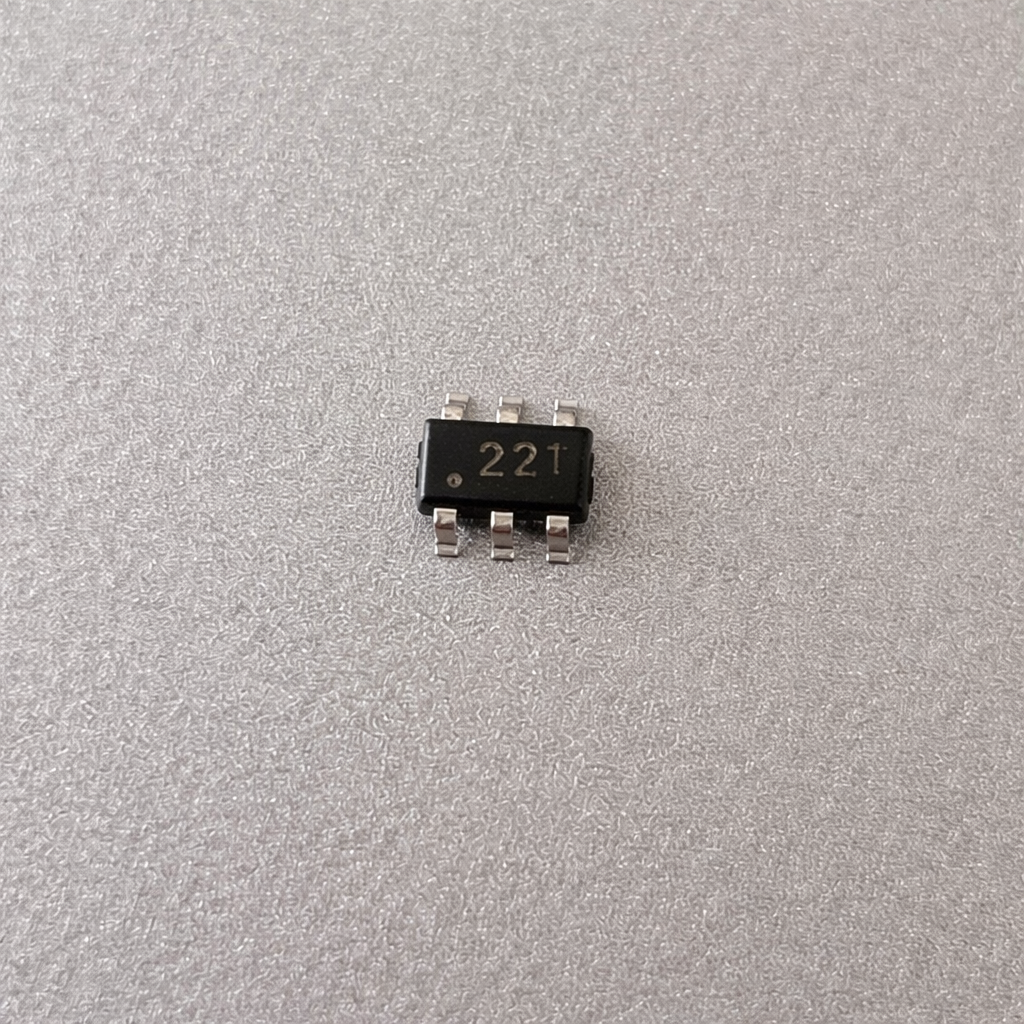

WCH CH221K USB Power Delivery Fast-Charge Sink Controller

  • Stock: 100

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: WCH
  • SKU: 10723 | DAJ793

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 48.85 (inc GST)
    Rs.41.40 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

WCH CH221K USB Power Delivery Fast-Charge Sink Controller

CH221K USB PD 3.0 sink controller negotiates USB Type-C supply voltage, with single-resistor selection for 5 V, 9 V, 12 V, 15 V or 20 V.

The WCH CH221K is a USB Power Delivery sink controller that requests a supply voltage from a USB Type-C source through the CC pins. It supports USB PD 3.0 and lets one resistor set the requested voltage from 5 V to 20 V, making it a practical USB Type-C power input controller for compact equipment.
CC1 and CC2 handle source negotiation, while an internal regulator supplies the controller's VDD rail. Single-resistor voltage selection simplifies the input setup and supports common USB PD voltage levels. The six-pin SOT23-6 surface-mount package helps fit the controller on compact boards.
Use the CH221K in wireless chargers, small appliances and lithium-battery-powered tools that need a higher-power input from a USB Type-C source. It helps these designs request a suitable supply level from a compatible power source.
DNA stocks WCH Communication IC's for USB Type-C power negotiation and fast-charge designs. Browse this category to find components for power input control and related circuit needs. Check other Communication IC's that we have in stock
For Indian electronics buyers, DNA can help if you cannot find a part. Ask us about import support and retail or bulk orders. You can also explore related power supply and DC to DC converter components. Contact Us

Features of WCH CH221K USB Power Delivery Fast-Charge Sink Controller

  • Negotiates USB Power Delivery requests with a Type-C power source
  • Uses CC1 and CC2 for Type-C signaling
  • Sets the requested voltage with a single resistor
  • Includes an internal regulator for VDD

Specifications of WCH CH221K USB Power Delivery Fast-Charge Sink Controller

  • USB Power Delivery protocol: USB PD 3.0
  • Maximum power: Up to 100 W for the CH224K/CH224D/CH221K product group
  • Requested voltage configuration: 10 kΩ for 5 V, 20 kΩ for 9 V, 47 kΩ for 12 V, 100 kΩ for 15 V, or 200 kΩ for 20 V
  • Package: SOT23-6, 6-pin surface-mount
  • Internal VDD regulator output: 3.0 V min, 3.3 V typ, 3.6 V max at TA = 25 °C
  • Internal regulator VDD sink capability: 30 mA max at TA = 25 °C
  • Power-on reset threshold: 2.2 V min, 2.4 V typ, 2.6 V max at TA = 25 °C
  • Ambient temperature limit (absolute maximum): -40 °C to 105 °C

Applications of WCH CH221K USB Power Delivery Fast-Charge Sink Controller

  • Wireless chargers
  • Small appliances
  • Lithium-battery-powered tools
  • Electronic devices requiring expanded high-power input

Related Links for WCH CH221K USB Power Delivery Fast-Charge Sink Controller

Package Includes

  • 1 X WCH CH221K USB Power Delivery Fast-Charge Sink Controller
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
