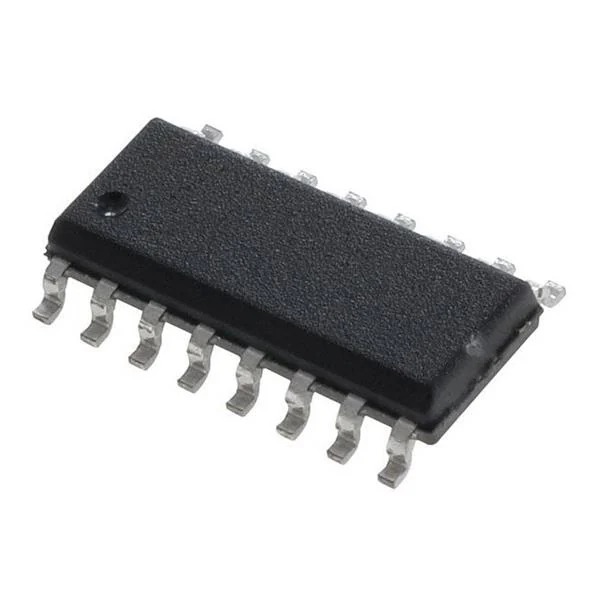

Product Images are shown for illustrative purposes only and may differ from actual product.

DG408DY 8 Channel High-Performance CMOS Analog Multiplexer SOIC 16 IC

Write a review | 1 reviews

Stock: 10
Availability: InStock priceValidUntil: 2026-11-25
SKU: 7407 | DAG317

Rs. 133.34 (inc GST)
Rs.113.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC

DG408DY, 8 channel CMOS multiplexer with low on-resistance, low charge injection, and fast transition time.

The DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC is designed for seamless switching of multiple analog signals. This IC connects one of eight inputs to a common output based on a 3-bit binary address. It features low on-resistance of 100 ohms and low charge injection of 20 pC, ensuring minimal signal distortion. The device operates with a single supply capability and is TTL compatible, making it suitable for various applications.

Ideal for data acquisition systems, audio signal routing, and medical instrumentation, the DG408DY ensures reliable performance in battery-powered and single supply systems. Its fast transition time of 160 ns minimizes delays, making it perfect for real-time applications. The break-before-make switching action protects against crosstalk, enhancing signal integrity.

Available at DNA, Nashik, the DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC is a reliable choice for engineers looking for a robust analog switching solution. Explore our complete range of ICs to find the perfect match for your project needs.

Explore the latest in MISC ANALOG IC's at DNA. The DG408DY from a trusted Manufacturer is a reliable component for various applications. Check other "MISC ANALOG IC's" that we have in stock.

If you cannot find specific electronic components, reach out to us at DNA. We can help you import parts that are unavailable and support your needs in retail and bulk. Consider our Development boards, Resistor, Sensor Module, Hongfa Relay, LCD, and Nextion Display. Contact Us

Features of DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC

Low on-resistance - RDS(on): 100 ohm
Low charge injection - Q: 20 pC
Fast transition time - tTRANS: 160 ns
Low power - ISUPPLY: 10 μA
Single supply capability
44 V supply max. rating
TTL compatible logic

Specification of DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC

8 channel
SOIC 16 package
3-bit binary address
Break-before-make switching
Analog signal routing

Applications of DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC

Data acquisition systems
Audio signal routing
Battery powered systems
Single supply systems
Medical instrumentation

Package Includes

1 X DG408DY 8 Channel High-Performance CMOS Analog Multiplexer IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
