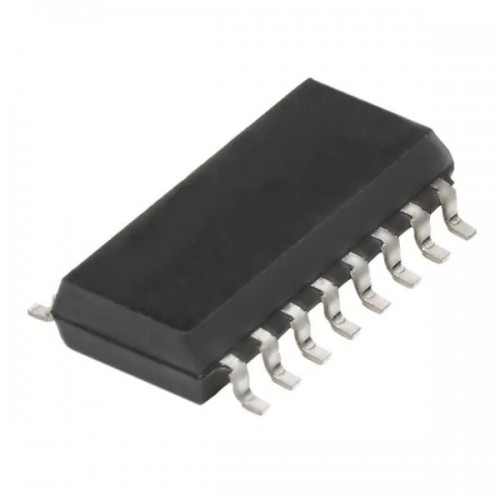

Product Images are shown for illustrative purposes only and may differ from actual product.

ElQ3H7 SMD IC (SOIC16) PHOTOTRANSISTOR PHOTOCOUPLER


Write a review | 0 reviews

  • Stock: 15

    Availability: InStock priceValidUntil: 2026-09-24

  • SKU: 7272 | DAI241

Availability: InStock priceValidUntil: 2026-09-24

  • Rs. 67.26 (inc GST)
    Rs.57.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ELQ3H7 Phototransistor OptoCoupler SMD IC

ELQ3H7 SMD IC with 4 channels, 3750V isolation, and CTR of 50~600%.

The ELQ3H7 Phototransistor OptoCoupler SMD IC features an infrared emitting diode and a phototransistor detector in a compact 16-pin package. It provides high isolation voltage of 3750 V rms, making it ideal for applications requiring safety and reliability. With a current transfer ratio (CTR) ranging from 50% to 600%, it ensures effective signal transmission across different potential circuits.

This ELQ3H7 Phototransistor OptoCoupler SMD IC is perfect for DC-DC converters, programmable controllers, and telecommunication equipment. Its compact size and RoHS compliance make it suitable for modern electronic designs. Experience seamless integration with other components in your projects.

For those in need of a reliable opto-isolator, the ELQ3H7 Phototransistor OptoCoupler SMD IC offers a robust solution with UL and VDE approvals, ensuring high-quality performance. This product is essential for signal transmission between circuits with different impedances.

Explore the world of reliable OptoCouplers & OptoIsolators at DNA. The ELQ3H7 from a trusted manufacturer ensures high performance and safety. Check other OptoCouplers & OptoIsolators that we have in stock.

If you are searching for specific electronic components, DNA can assist you. We can import parts that are not readily available and support your needs in retail or bulk. Explore related items like Sensor Modules, SMPS, or Inductors. Contact Us.

Features of ELQ3H7 Phototransistor OptoCoupler SMD IC

  • High isolation voltage 3750 V rms
  • Compact 16-pin SMD package
  • Pb free and RoHS compliant
  • Current transfer ratio: 50~600%

Specification of ELQ3H7 Phototransistor OptoCoupler SMD IC

  • 4 channels
  • Viso=3750 V rms
  • CTR: 50~600% at IF =5mA, VCE =5V

Applications of ELQ3H7 Phototransistor OptoCoupler SMD IC

  • DC-DC converters
  • Programmable controllers
  • Telecommunication equipment
  • Signal transmission between circuits

Related Links for ELQ3H7 Phototransistor OptoCoupler SMD IC

Package Includes

  • 1 X ELQ3H7 Phototransistor OptoCoupler SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
