Product Images are shown for illustrative purposes only and may differ from actual product.

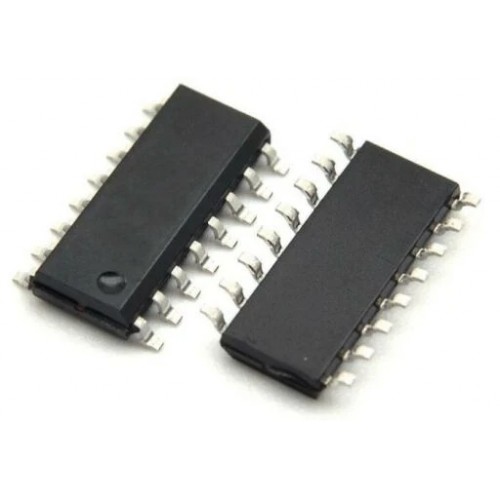

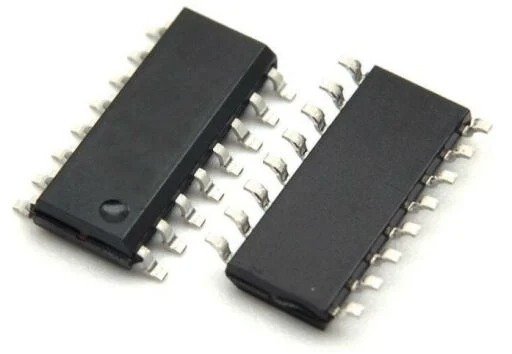

DG413 CMOS analog switch SOP-16 Package IC

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-12-16

  • SKU: 7424 | DAH349

Availability: InStock priceValidUntil: 2026-12-16

  • Rs. 389.40 (inc GST)
    Rs.330.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

DG413 CMOS Analog Switch IC

DG413 CMOS analog switch for analog signal routing + Low on-resistance of 35 ohms + Wide voltage range of ±15V.

The DG413 CMOS Analog Switch is a high-performance, low-power device ideal for precision signal routing. With a low on-resistance of 35 ohms and a wide voltage range of ±15V, it excels in applications requiring accurate analog multiplexing and sample-and-hold circuits. This analog switch offers fast switching speeds of 175 ns, making it suitable for both audio and video signal switching. Its CMOS design ensures low power consumption, which is vital for battery-operated devices.
Engineered for versatility, the DG413 CMOS Analog Switch is TTL and CMOS compatible, ensuring easy integration with various logic circuits. Its break-before-make switching feature prevents signal shorts, ensuring reliable operation in demanding environments. This makes it an excellent choice for precision data acquisition systems and medical instrumentation applications.
For Indian customers focused on quality and reliability, the DG413 CMOS Analog Switch provides a robust solution for signal routing in electronic circuits. Explore how this component can enhance your projects and ensure precise analog signal handling.
At DNA, we offer a wide range of MISC ANALOG IC's from top brands like the DG413. Explore our collection to find the right analog switches and components for your projects. Check other MISC ANALOG IC's that we have in stock.
If you are looking for specific electronic components, reach out to us. We can help you find parts like Resistors, Humidity & Temperature Sensors, and more. If you can't find what you need, we can also import components for you. Contact Us.

Features of DG413 CMOS Analog Switch IC

  • Low On-Resistance: Typically 35 ohms
  • Wide Analog Voltage Range: ±15V, 0 to +30V
  • Low Power Consumption: CMOS design for low power use
  • Fast Switching Speed: 175 ns (typical)
  • Low Charge Injection: Minimizes signal distortion
  • Break-Before-Make Switching: Prevents signal shorts
  • TTL and CMOS Compatible: Easy interface with logic circuits

Specification of DG413 CMOS Analog Switch IC

  • Low On-Resistance: 35 ohms
  • Analog Voltage Range: ±15V
  • Switching Speed: 175 ns
  • Power Supply Voltage: 0 to +30V
  • Package Type: SOP-16

Applications of DG413 CMOS Analog Switch IC

  • Precision data acquisition systems
  • Audio and video signal switching
  • Analog multiplexers
  • Sample-and-hold circuits
  • Medical instrumentation

Related Links for DG413 CMOS Analog Switch IC

Package Includes

  • 1 X DG413 CMOS analog switch SOP-16 Package IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
