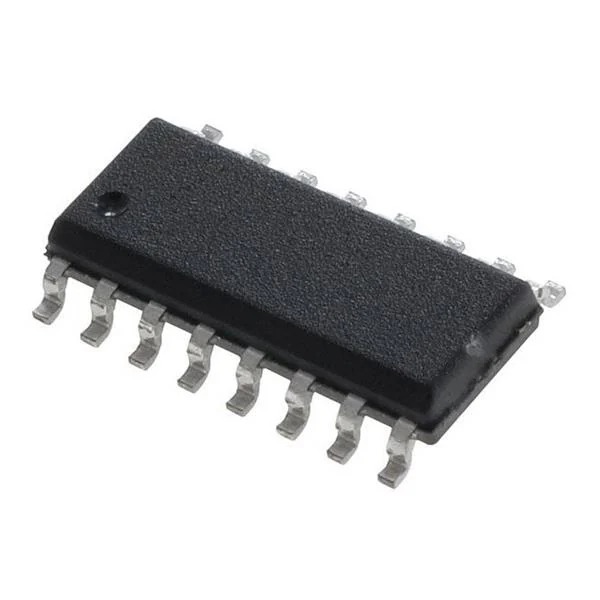

DG409 8-channel single-ended analog multiplexer/demultiplexer SOP-16 IC

DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC

DG409 8-channel analog multiplexer with low on-resistance, high-speed switching, and low leakage current.

The DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC is ideal for high-performance analog switching and signal routing applications. This monolithic IC offers low on-resistance, typically 100Ω, ensuring minimal signal distortion. Its fast switching times of 150ns (turn-on) and 100ns (turn-off) make it suitable for high-speed applications. With a wide analog signal range from ±15V to 36V, the DG409 is versatile for various circuits.

Engineered for precision, the DG409 maintains high signal integrity with low leakage current, typically 0.01µA. This feature is crucial for applications requiring accurate signal processing. Additionally, the high off-isolation of -60 dB at 1 MHz minimizes interference when channels are not selected, enhancing overall performance.

Incorporating low power consumption of just 1 µW, the DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC is an efficient choice for modern electronic designs. Whether for commercial or personal projects, this component meets the demands of today’s advanced electronics in India.

Explore the versatile range of Misc Digital IC's at DNA. The DG409 from a trusted brand offers reliable performance for your electronic projects. Check other Misc Digital IC's that we have in stock.

If you're searching for specific electronic components, DNA is here to help. We can import parts not in stock and support both retail and bulk purchases. Consider related items like DC to DC Converter Module, Humidity & Temperature Sensor, and more. Contact Us.

Features of DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC

• Low On-Resistance: 100Ω
• Low Leakage Current: 0.01µA
• High-Speed Switching: 150ns (turn-on), 100ns (turn-off)
• Wide Analog Signal Range: ±15V to 36V
• Low Power Consumption: 1 µW
• High Off-Isolation: -60 dB

Specifications of DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC

• On-Resistance: 100Ω typical
• Switching Time: 150ns (turn-on), 100ns (turn-off)
• Analog Signal Range: ±15V (dual supply) or 0V to 36V (single supply)
• Input Current (per channel): 0.01µA
• Off-Isolation: -60 dB at 1 MHz

Applications of DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC

• Analog signal routing
• Precision signal processing
• Data acquisition systems
• Audio switching applications
• Test and measurement equipment

Package Includes

• 1 X DG409 8-Channel Single-Ended Analog Multiplexer/Demultiplexer IC SOP-16 IC
