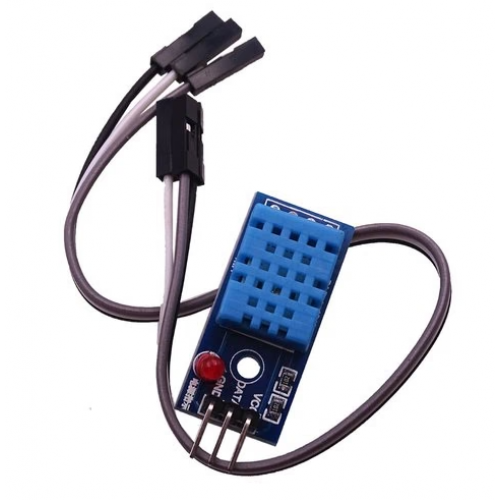

DHT11 Temperature and Humidity Sensor Module with LED Indicator

DHT11 Temperature and Humidity Sensor Module with LED Indicator

DHT11 sensor module for ambient temperature and humidity measurement, with 3–5 V operation, an LED indicator and an onboard data-line pull-up resistor.

The DHT11 Temperature and Humidity Sensor Module with LED Indicator measures ambient temperature and humidity for Arduino projects. It runs on 3–5 V and mounts the sensor on a PCB for easy connection. Use it for Arduino temperature and humidity measurement in a basic electronics setup. An onboard pull-up resistor connects the data line to VCC, so a separate pull-up resistor may not be needed. The LED indicator and four-pin layout help make the DHT11 sensor module easy to identify and wire. This module suits environmental temperature and humidity monitoring with an Arduino. Its 3–5 V sensor operation supports common low-voltage project setups.

Explore the DHT11 module and other options at DNA for electronics projects and repairs. Browse our Temperature and Humidity Sensor range to find a part that suits your build. Check other Temperature and Humidity Sensor that we have in stock

Buying electronics in India? Contact DNA if you cannot find a part. We can support imports and retail or bulk orders. Ask us about related Sensors, Resistors, Development Modules, Nextion Displays, HMI Displays and Crystals. Contact Us

Features of DHT11 Temperature and Humidity Sensor Module with LED Indicator

• PCB-mounted sensor module
• LED indicator on the board
• Onboard pull-up resistor for the data line
• Four-pin connection layout

Specifications of DHT11 Temperature and Humidity Sensor Module with LED Indicator

• Operating voltage: 3–5 V for power and I/O
• Temperature measurement range: 0–50 °C, accuracy ±2 °C
• Humidity measurement range: 20–80% RH, accuracy ±5%
• Maximum current: 2.5 mA during conversion while requesting data
• Pins: 4, with 0.1 in spacing
• Onboard pull-up resistor: 4.7 kΩ or 10 kΩ, for connecting the data pin to VCC

Applications of DHT11 Temperature and Humidity Sensor Module with LED Indicator

• Arduino-connected environmental temperature and humidity measurement

Related Links for DHT11 Temperature and Humidity Sensor Module with LED Indicator

• Other Products from Temperature and Humidity Sensor Category

Package Includes

• 1 X DHT11 Temperature and Humidity Sensor Module with LED Indicator
