WCS37A50 Hall Effect Based Current Sensor

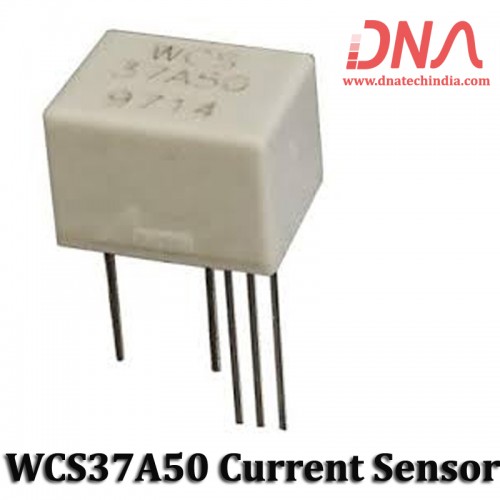

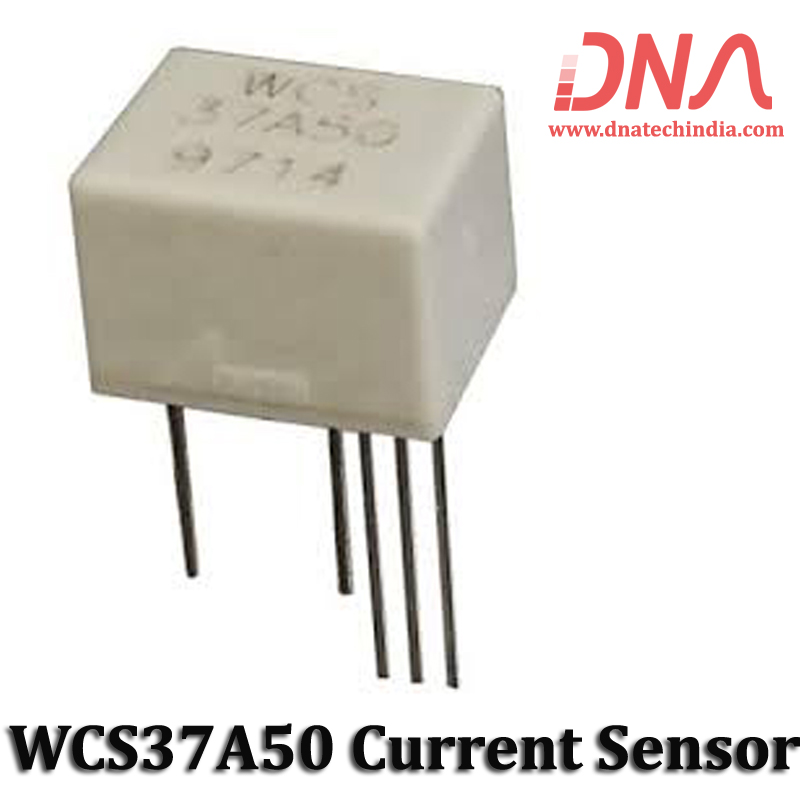

WCS37A50 - Hall Effect Based Linear Current Sensor

The Winson WCS37A50 Hall effect current Sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems. The unique package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc.

The WCS37A50 Hall effect current sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a current path with 1.5 Ω typical internal conductor resistance. This extremely low resistance can effectively reduce power loss, operating temperature and increase the reliability greatly. Applied current flowing through this conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.
The terminals of the conductive path are electrically isolated from the sensor leads. This allow the WCS37A50 current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.

DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.

Features of WCS37A50 Hall Effect Current Sensor

• Low noise analog signal path

• 1.5 Ω internal conductor resistance

• Output voltage proportional to AC and DC current

• Min. sensing current 0 ~ 0.5 A at 5 V voltage supply

• High Sensitivity 3.5 mV/mA

• Wide operating voltage range 3.0 ~ 12 V

• Low operating current 3 mA

• Nearly zero magnetic hysteresis

• Ratiometric output from supply voltage

• 10K Hz bandwidth

Related Links

• WCS37A50 Current Sensor Datasheet
