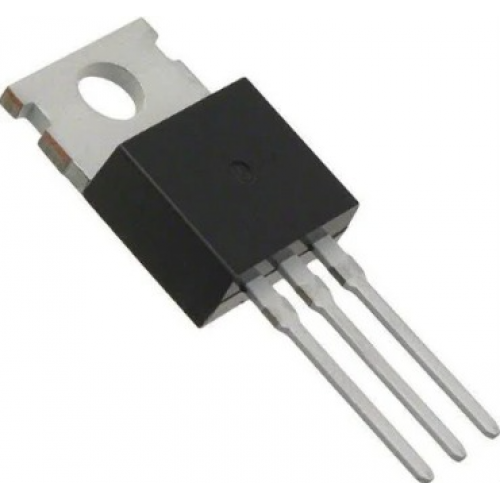

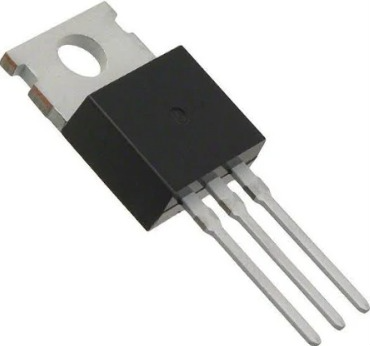

DMV1500M Damper + Modulation Diode TO-220FPAB Package

High-Voltage DMV1500M Damper + Modulation Diode

DMV1500M: High-Voltage Damper & Modulation Diode for video displays with 1500V breakdown and fast recovery.

The DMV1500M Damper + Modulation Diode is designed for horizontal deflection and E/W correction in CRT video displays. This integrated diode pair features a high-voltage damper diode with a breakdown capability of up to 1500V and a fast modulation diode, ensuring efficient performance in video circuits. The DMV1500M offers very fast recovery times, low forward voltage drop, and excellent thermal handling in a compact TO-220FPAB package.

Engineered for reliable switching, the DMV1500M maintains low dissipation and high efficiency, making it ideal for demanding applications. Its insulated package ensures 2000VRMS isolation, making it suitable for various high-voltage environments. With its planar technology, the DMV1500M guarantees consistent electrical characteristics, enhancing overall system performance.

Incorporate the DMV1500M Damper + Modulation Diode into your designs for robust deflection solutions and reliable video display operations. It is perfect for CRT applications, ensuring optimal performance and longevity.

Explore reliable solutions at DNA, your trusted supplier for the Brand in the Diodes & Transistors category. Discover more products in our extensive selection of Diodes & Transistors. Check other "Diodes & Transistors" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can help you find parts like Capacitors, Power Supplies, IGBTs, and more. We also support retail and bulk orders. Contact Us.

Features of High-Voltage DMV1500M Damper + Modulation Diode

• Integrated damper and modulation diode
• High breakdown voltage of 1500V
• Fast recovery time
• Low forward voltage drop
• Insulated TO-220FPAB package
• Excellent thermal handling
• Planar technology for consistent performance

Specification of High-Voltage DMV1500M Damper + Modulation Diode

• Device Type: Damper & Modulation Diodes
• Repetitive Peak Reverse Voltage: Damper 1500V, Modulation 600V
• Average Forward Current: Damper 6A, Modulation 3A
• Reverse Recovery Time: Damper 135ns, Modulation 50ns
• Forward Voltage: Damper 1.65V, Modulation 1.4V
• Surge Forward Current: Damper 75A, Modulation 35A
• Thermal Resistance: 3.7°C/W
• Operating Junction Temperature: 150°C
• Insulation Voltage: 2000VRMS

Applications of High-Voltage DMV1500M Damper + Modulation Diode

• Horizontal deflection stages in CRT displays
• E/W correction circuits
• Fast-recovery high-voltage applications
• Video display systems

Related Links for High-Voltage DMV1500M Damper + Modulation Diode

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X High-Voltage DMV1500M Damper + Modulation Diode (TO-220FPAB)
