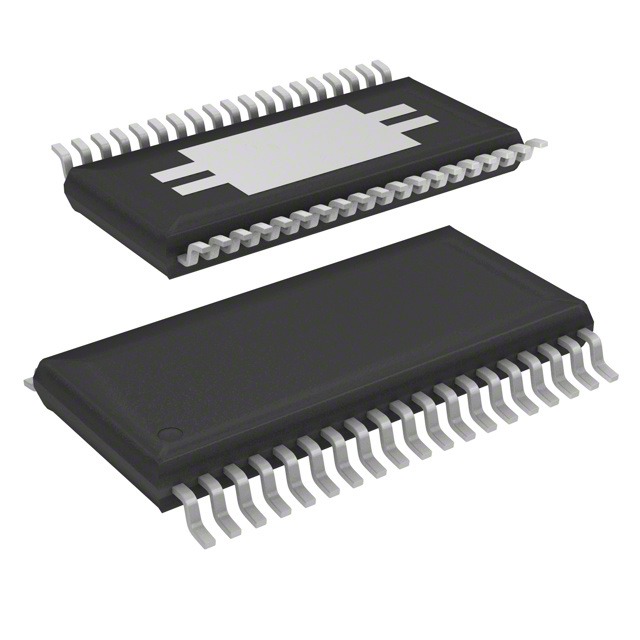

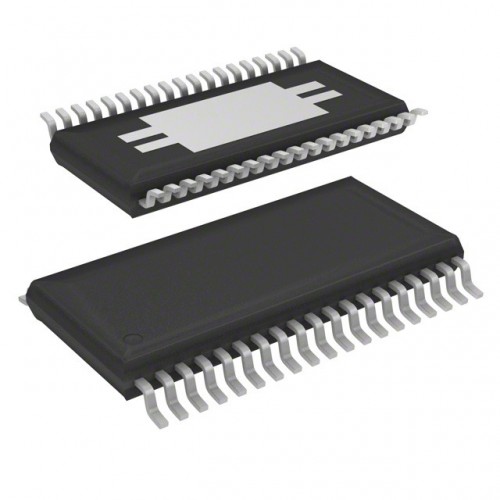

Texas Instruments DRV8711DCPR Stepper Motor Controller IC

DRV8711DCPR stepper motor controller IC with 8 V to 52 V motor supply, microstepping up to 1/256 step and STEP/DIR or PWM control.

The Texas Instruments DRV8711DCPR is a stepper motor controller IC for systems that use external N-channel MOSFETs. It supports a motor supply from 8 V to 52 V and can also control two brushed DC motors. Its integrated indexer lets designers select microstepping up to 1/256 step for smooth, controlled motor movement.
Programmable current regulation and several decay modes let engineers tune motor drive behavior to their design. The IC accepts STEP/DIR or direct PWM inputs and uses an SPI interface for configuration. Back-EMF stall detection and built-in fault protection help monitor motor operation and respond to fault conditions.
Use this controller in robotics, office automation machines, factory automation and textile machines. Its support for stepper and brushed DC motor control can help simplify motor-control design across these systems.
DNA stocks Texas Instruments components for motor-control designs, including the DRV8711DCPR. Explore our Motor Driver range to find parts for your project or production needs. Check other Motor Driver that we have in stock
If you cannot find a part, contact DNA for import support. We support Indian buyers with retail and bulk orders. You can also explore sensors, SMD capacitors, banana connectors, e-bike parts and Atmel AVR components. Contact Us

Features of Texas Instruments DRV8711DCPR Stepper Motor Controller IC

  • Adjustable PWM current regulation and torque control
  • Selectable current decay modes for motor tuning
  • STEP/DIR or direct PWM control inputs
  • SPI interface for configuration
  • Back-EMF-based stall detection
  • Integrated fault protection

Specifications of Texas Instruments DRV8711DCPR Stepper Motor Controller IC

  • Motor power supply voltage: 8 V to 52 V recommended operating range
  • Microstepping modes: Full-step through 1/256 step
  • STEP frequency: Up to 250 kHz
  • PWM off-time adjustment: 0.5 µs to 128 µs, set by the TOFF register
  • Operating ambient temperature: -40 °C to 85 °C
  • Package: 38-pin HTSSOP PowerPAD, DCP
  • Nominal package body size: 9.70 mm × 4.40 mm

Applications of Texas Instruments DRV8711DCPR Stepper Motor Controller IC

  • Bipolar stepper motor control
  • Brushed DC motor control
  • Office and factory automation
  • Robotics

Related Links for Texas Instruments DRV8711DCPR Stepper Motor Controller IC

Package Includes

  • 1 X Texas Instruments DRV8711DCPR Stepper Motor Controller IC
