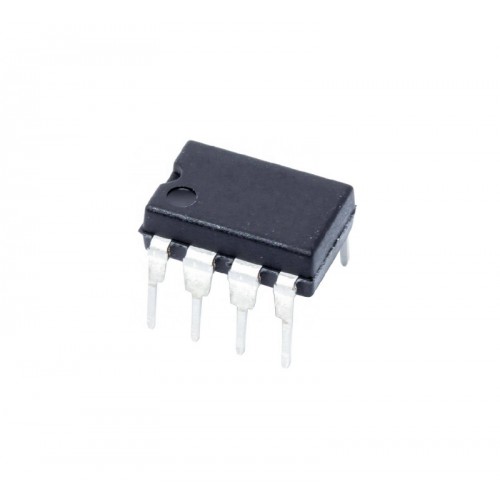

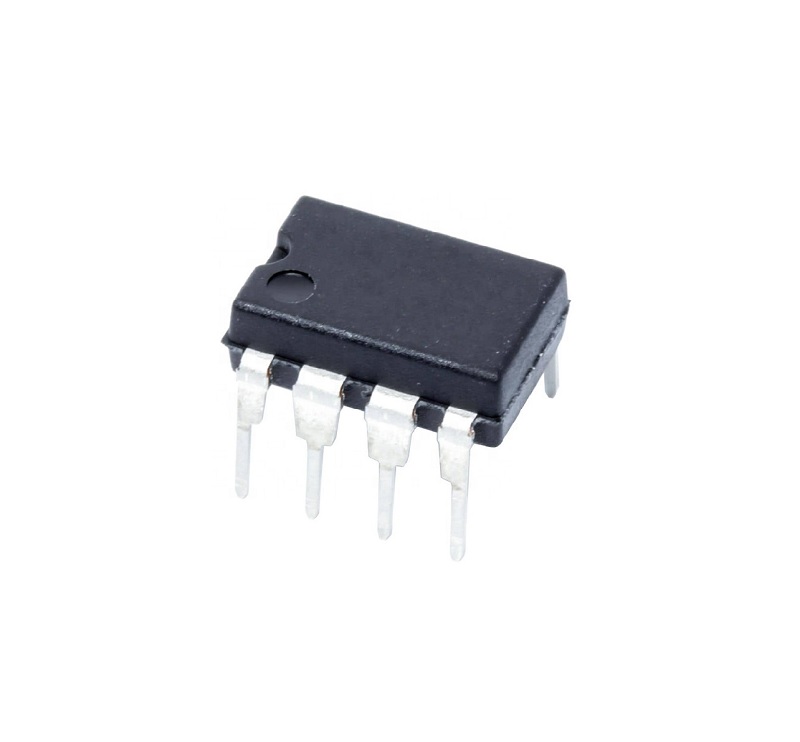

Product Images are shown for illustrative purposes only and may differ from actual product.

TC4420-6A High-Speed Mosfet Driver IC – DIP-8 Package

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-14

  • SKU: 7162 | DAH060

Availability: NotInStock priceValidUntil: 2026-12-14

  • Rs. 156.94 (inc GST)
    Rs.133.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TC4420 High-Speed Mosfet Driver IC – DIP-8 Package

TC4420-6A Mosfet Driver IC for low-side switching with 3A output current and TTL/CMOS compatible inputs.

The TC4420 High-Speed Mosfet Driver IC – DIP-8 Package is engineered for efficient low-side switching applications. This driver ensures rapid switching of power MOSFETs and IGBTs. With a peak output current of 3A and a wide operating voltage range of 10V to 20V, it meets various needs in electronic design. Its low output impedance facilitates fast switching, making it ideal for applications requiring high-frequency operation.
Featuring TTL/CMOS compatible inputs, the TC4420 High-Speed Mosfet Driver IC integrates seamlessly with logic circuits. Additional safety features include under-voltage lockout (UVLO) and latch-up protection, ensuring reliable operation under varying conditions. This makes it suitable for applications such as switching power supplies, DC-DC converters, and motor drivers.
Choose the TC4420 High-Speed Mosfet Driver IC – DIP-8 Package for your next project requiring efficient MOSFET or IGBT switching. Its robust performance and protective features make it a reliable choice for engineers and hobbyists in India.
Discover the reliability of the Motor Driver category. Explore the TC4420 from a trusted manufacturer at DNA. Check other Motor Driver that we have in stock.
If you need specific electronic components, reach out to us. We can support retail and bulk orders, and we can import items not currently in stock. Consider checking related items like Nextion Display, HMI Display, Diode, Analog IC, and Connectors. Contact Us.

Features of TC4420 High-Speed Mosfet Driver IC – DIP-8 Package

  • High Peak Output Current: 3A
  • Wide Operating Voltage Range: 10V to 20V
  • Low Output Impedance
  • High Speed Switching
  • TTL/CMOS Compatible Inputs
  • Under-Voltage Lockout (UVLO)
  • Latch-Up Protection

Specification of TC4420 High-Speed Mosfet Driver IC – DIP-8 Package

  • Output Current: 3A
  • Voltage Range: 10V to 20V
  • Package Type: DIP-8
  • Input Compatibility: TTL/CMOS
  • Propagation Delay: Low

Applications of TC4420 High-Speed Mosfet Driver IC – DIP-8 Package

  • Switching Power Supplies
  • DC-DC Converters
  • Motor Drivers
  • Class D Amplifiers
  • Inverters

Related Links for TC4420 High-Speed Mosfet Driver IC – DIP-8 Package

Package Includes

  • 1 X TC4420-6A High-Speed Mosfet Driver IC – DIP-8 Package
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
