Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module

  • Stock: 90

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 8992 | DAI063

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 240.13 (inc GST)
    Rs.203.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

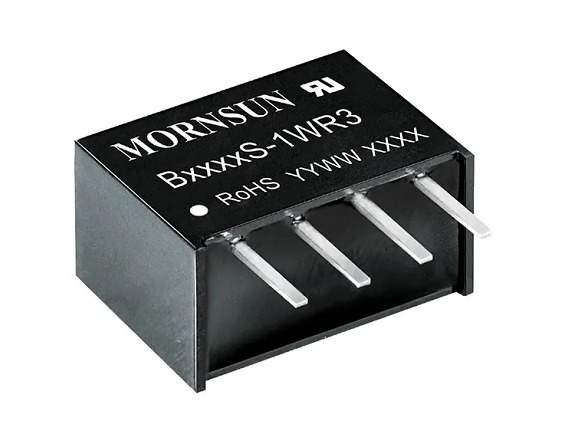

Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module

Mornsun B0512S-1WR3 is a 1 W isolated DC/DC converter module with a 4.5–5.5 V input, 12 V unregulated output and 84 mA maximum output current.

The Mornsun B0512S-1WR3 is an isolated DC/DC converter module that converts a nominal 5 V DC input to a single, unregulated 12 V DC output. It delivers up to 1 W of output power and provides input-to-output isolation for circuits that need separate power domains.
Its self-recovering short-circuit protection helps the module resume operation after a short-circuit fault clears. The compact four-pin design fits space-limited boards, while the case uses flame-retardant, heat-resistant material.
Use this 5 V to 12 V converter in distributed power systems that need an isolated supply. It also suits pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits.
DNA stocks Mornsun DC to DC Converter Modules for electronics design and repair needs. Check other DC to DC Converter Modules that we have in stock
If you cannot find a part, contact DNA for import support. We support Indian electronics buyers with retail and bulk orders. Ask us about related Resistors, Transistors, MOSFETs, LCDs, DC to DC Converter Modules or Microcontrollers. Contact Us

Features of Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module

  • Provides input-to-output electrical isolation
  • Self-recovering short-circuit protection
  • Compact four-pin design for board mounting
  • Flame-retardant, heat-resistant case

Specifications of Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module

  • Nominal input voltage: 5 VDC (operating range: 4.5–5.5 VDC)
  • Output voltage: 12 VDC, single unregulated output
  • Output current: 9 mA minimum, 84 mA maximum
  • Output power: 1 W
  • Input-output isolation test voltage: 1500 VDC for 1 minute
  • Full-load efficiency: 79% minimum, 83% typical
  • Operating temperature: −40°C to +105°C (derating applies at ≥85°C for this input-voltage variant)
  • Dimensions: 11.60 × 6.00 × 10.16 mm

Applications of Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module

  • Distributed power supply systems requiring an isolated voltage
  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits

Related Links for Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module

Package Includes

  • 1 X Mornsun B0512S-1WR3 1 W Isolated DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
