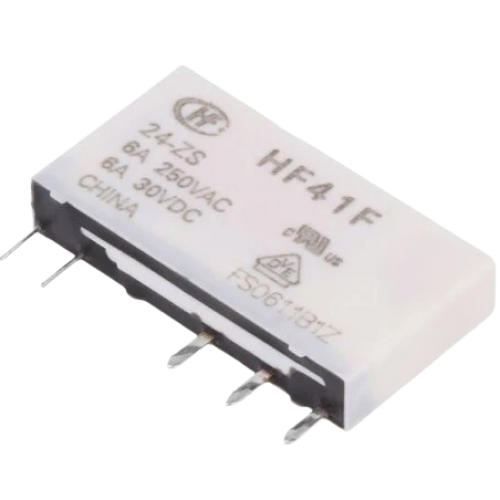

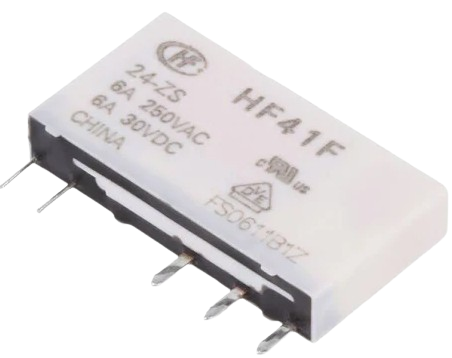

Hongfa HF41F/24-ZS 24VDC Form C Subminiature Power Relay

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-19

  • Brand: Hongfa
  • SKU: 8722 | DAI144

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 162.72 (inc GST)
    Rs.137.90 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF41F/24-ZS 24VDC Form C Subminiature Power Relay

HF41F/24-ZS is a 24 VDC Form C subminiature power relay with a 6 A resistive-load contact rating and PCB terminals.

The Hongfa HF41F/24-ZS is a 24 VDC Form C power relay for switching a circuit between normally open and normally closed contacts. It has a 6 A contact rating for resistive loads at 250 VAC or 30 VDC, making it useful in compact control designs.
Its plastic-sealed construction and PCB terminals support direct board mounting. The relay also uses about 170 mW of coil power and provides 4000 VAC dielectric strength between the coil and contacts. These design features help engineers fit switching and coil-to-contact separation into a compact assembly.
The subminiature relay suits PCB-based circuits that need a changeover contact and a 24 VDC coil. Its long mechanical endurance supports repeated switching over the relay's service life.
DNA supplies Hongfa Relay products for electronics buyers who need a clear part match and retail or bulk ordering support. Browse the Hongfa range at DNA. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders. We can also help source related items such as Hongfa Relay, Programmer, Transistor, LCD, Sensor Module and HMI Display. Contact Us

Features of Hongfa HF41F/24-ZS 24VDC Form C Subminiature Power Relay

  • Form C contact switches between normally open and normally closed circuits
  • Plastic-sealed construction
  • PCB terminals support board mounting
  • Low coil power supports efficient relay operation
  • High coil-to-contact dielectric strength
  • Designed for repeated mechanical operation

Specifications of Hongfa HF41F/24-ZS 24VDC Form C Subminiature Power Relay

  • Nominal coil voltage: 24 VDC
  • Contact arrangement: 1 Form C
  • Contact rating: 6 A at 250 VAC / 30 VDC for resistive loads
  • Maximum switching voltage: 400 VAC / 300 VDC
  • Maximum switching current: 6 A
  • Dielectric strength, coil to contacts: 4000 VAC for 1 minute
  • Ambient temperature: -40 °C to 85 °C
  • Outline dimensions: 28 × 15 × 5 mm, excluding pin length

Related Links for Hongfa HF41F/24-ZS 24VDC Form C Subminiature Power Relay

Package Includes

  • 1 X Hongfa HF41F/24-ZS 24VDC Form C Subminiature Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
