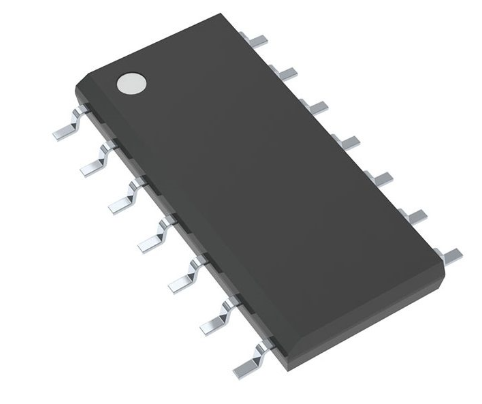

SN74HC74DR SMD IC Dual D-type Flip-flop

SN74HC74DR SMD IC Dual D-type Flip-flop

SN74HC74DR SMD IC for dual D-type flip-flop with clear and preset, supports 60MHz clock speed.

The SN74HC74DR SMD IC Dual D-type Flip-flop is a reliable SMD IC designed for high-performance applications. This dual D-type positive-edge-triggered flip-flop features independent channels that allow for clear and preset functions. It operates efficiently at a clock speed of 60MHz and ensures stable output transfer at the positive-going edge of the clock pulse. This makes it suitable for applications in ultrasound systems, lab instrumentation, and vacuum cleaners.

With a low-level signal at the preset (PRE) or clear (CLR) inputs, the outputs can be set or reset regardless of other input levels. The SN74HC74DR is ideal for designers seeking precision in timing control and data handling.

For those in need of a dependable flip-flop for their electronic projects, the Texas Instruments SN74HC74DR offers a robust solution that meets the demands of modern circuit design. Explore its capabilities for your next project.

At DNA, we offer the SN74HC74DR SMD IC Dual D-type Flip-flop as part of our extensive range of 7400 Series IC's. Discover the precision and reliability of this category. Check other "7400 Series IC's" that we have in stock.

If you're searching for specific electronic components, DNA can assist you. We can source hard-to-find parts and offer support in retail and bulk orders. Explore options like DC to DC Converter Modules, Connectors, and more. Contact Us.

Features of SN74HC74DR SMD IC Dual D-type Flip-flop

• Dual D-type flip-flop
• Positive-edge-triggered
• Clear and preset functions
• 60MHz clock speed
• Suitable for various applications

Specification of SN74HC74DR SMD IC Dual D-type Flip-flop

• Supply Voltage: 2V to 6V
• Operating Temperature: -40°C to 125°C
• Input Logic Levels: VIL: 0.3V, VIH: 0.7V
• Propagation Delay: 15ns
• Power Consumption: 4µA

Applications of SN74HC74DR SMD IC Dual D-type Flip-flop

• Ultrasound systems
• Lab instrumentation
• Vacuum cleaners
• Timing circuits
• Data storage applications

Package Includes

• 1 X SN74HC74DR SMD IC Dual D-type Flip-flop
