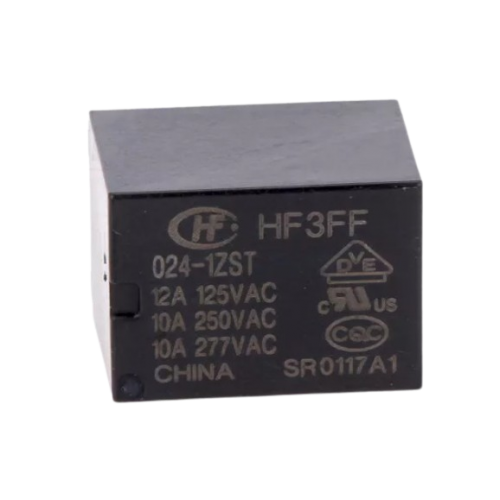

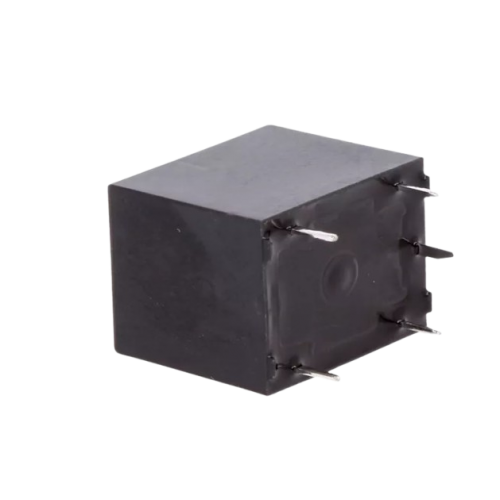

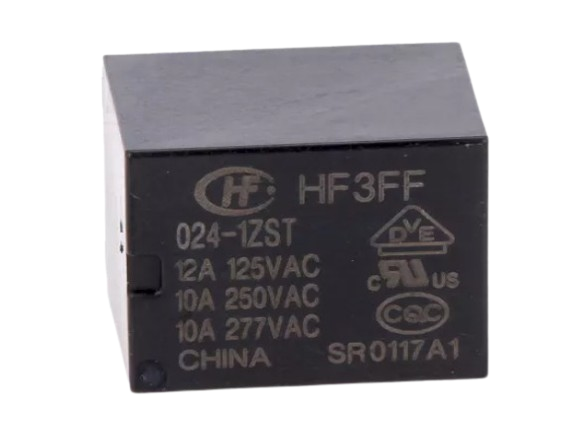

Hongfa HF3FF/024-1ZST 24 VDC 1 Form C PCB Relay

  • Stock: 21

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: Hongfa
  • SKU: 8719 | DAI141

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 47.91 (inc GST)
    Rs.40.60 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF3FF/024-1ZST 24 VDC 1 Form C PCB Relay

HF3FF/024-1ZST 24 VDC 1 Form C PCB relay with plastic-sealed construction and AgSnO2 contacts.

The Hongfa HF3FF/024-1ZST is a subminiature high-power PCB relay with a 24 VDC coil and 1 Form C contacts. It switches between normally open and normally closed paths, so one relay can control either contact state from a single coil input.
Its plastic-sealed construction suits PCB assembly, while AgSnO2 contacts define its contact material. The relay uses PCB termination and provides 10 million mechanical operations, a useful endurance figure when planning relay service life. Its NO and NC contacts have different switching ratings, so match the contact path and load to the specifications.
For board-level switching, this compact electromechanical design combines coil control and changeover contacts in one component. It suits PCB layouts that need a 24 VDC coil and a normally open or normally closed switching choice.
DNA supplies Hongfa Relay components for electronics buyers in India. Browse our Hongfa Relay range to find relays for your PCB designs and sourcing needs. Check other Hongfa Relay that we have in stock
DNA supports Indian electronics buyers with import assistance and retail or bulk orders. If you cannot find a part, contact us to check availability. You can also ask about sensors, MOSFETs, Analog ICs, resistors, development boards and development modules. Contact Us

Features of Hongfa HF3FF/024-1ZST 24 VDC 1 Form C PCB Relay

  • Form C contacts switch between normally open and normally closed paths
  • Plastic-sealed construction
  • AgSnO2 contact material
  • PCB termination for board mounting

Specifications of Hongfa HF3FF/024-1ZST 24 VDC 1 Form C PCB Relay

  • Nominal coil voltage: 24 VDC
  • Contact rating: NO 10 A at 277 VAC or 28 VDC
  • Coil power: Approximately 360 mW (standard type)
  • Maximum switching voltage: 250 VAC (1 Form C)
  • Dielectric strength: 1500 VAC for 1 minute between coil and contacts
  • Mechanical endurance: 1 × 10^7 operations
  • Ambient operating temperature: -40°C to 105°C (contact Hongfa for ambient temperatures above 85°C)

Related Links for Hongfa HF3FF/024-1ZST 24 VDC 1 Form C PCB Relay

Package Includes

  • 1 X Hongfa HF3FF/024-1ZST 24 VDC 1 Form C PCB Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
