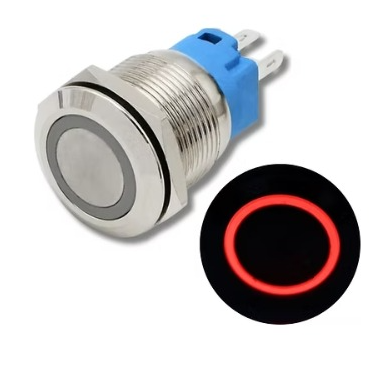

SS Switch IP67 22mm 12 to 24 Volts, Momentary, Red Ring Indicator (Flat Head)

SS Switch IP67 22mm 12 to 24 Volts, Momentary, Red Ring Indicator (Flat Head)

The SS Switch IP67 is a high-quality, stainless steel push-button switch designed for durability, reliability, and versatility. It features a 22mm mounting hole size, making it suitable for various control panels, industrial applications, and DIY projects. This switch is a momentary type, meaning it stays ON only while being pressed and returns to OFF when released, making it ideal for triggering or momentary control functions.

The SS Switch IP67 flat head design gives it a modern and sleek appearance, while the integrated red ring LED indicator provides a clear visual status, showing whether the switch is active or inactive. The IP67 rating ensures waterproof and dustproof protection, making it suitable for harsh environments, outdoor use, and industrial control systems.

This SS Switch IP67 operates on a wide voltage range of 12V to 24V DC, making it adaptable for multiple power supply configurations. It is constructed from stainless steel, ensuring resistance to corrosion and mechanical damage, thus increasing longevity and reliability in demanding conditions. The switch supports both Normally Open (NO) and Normally Closed (NC) configurations, allowing flexibility in circuit design.

DNA Solutions, Nashik has various types of switches. Check out our complete collection of Switches.

Features of SS Switch IP67 22mm 12 to 24 Volts, Momentary, Red Ring Indicator (Flat Head)

• Material: Stainless Steel (Corrosion-resistant & Durable)

• Mounting Hole Diameter: 22mm

• Head Type: Flat Head

• IP67 Rated: Waterproof & Dustproof

• Mechanical Life: Up to 500,000 cycles

• Electrical Life: Up to 50,000 cycles

Specifications of SS Switch IP67 22mm 12 to 24 Volts, Momentary, Red Ring Indicator (Flat Head)

• Switch Type: Momentary Push Button (Press to ON, Release to OFF)

• Voltage Rating: 12V - 24V DC

• Current Rating: 3A - 5A

• Cutout Size: 22mm

• Indicator LED: Red Ring

• IP Rating: IP67 (Waterproof & Dustproof)

• Operating Temperature: -20°C to 55°C

Applications of SS Switch IP67 22mm 12 to 24 Volts, Momentary, Red Ring Indicator (Flat Head)

• Industrial Control Panels

• Automotive Applications

• Marine & Outdoor Equipment

• Home Automation & Security Systems

• DIY Electronics Projects

• Aerospace & Military Equipment

• Medical & Laboratory Devices

Package Includes

     1 x SS Switch IP67 22mm 12 to 24 Volts, Momentary, Red Ring Indicator (Flat Head)
