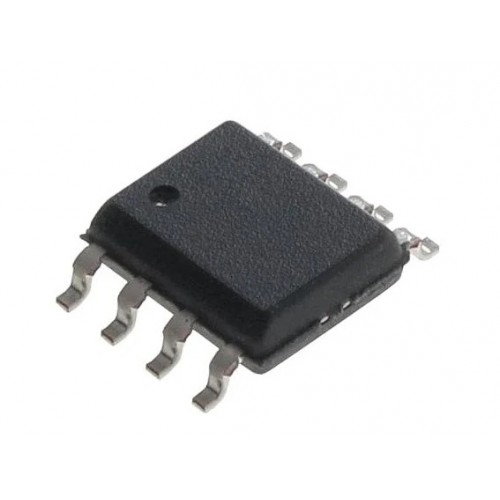

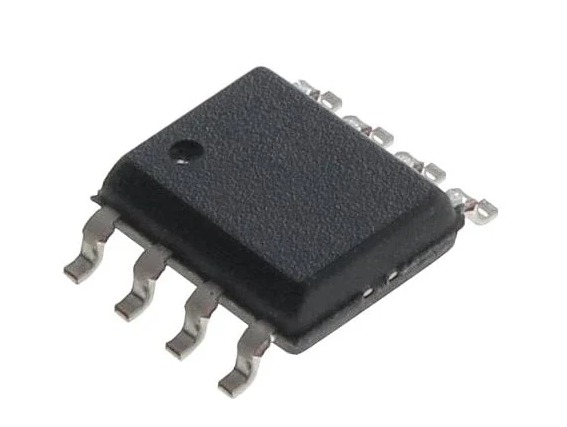

NCP1392DDR2G Half-Bridge Gate Driver SMD IC

NCP1392DDR2G Half-Bridge Gate Driver SMD IC

The NCP1392DDR2G is a Half-Bridge Gate Driver SMD (Surface-Mount Device) IC that is designed to control the power switching in power management systems, particularly for high-efficiency power supplies. It is typically used in power converters, motor drivers, and other applications where efficient and reliable switching is required.

DNA solutions, Nashik has various types of Gate Driver IC's. Check out our complete collection of Gate Driver IC's.

• Thermal Shutdown Protection: Built-in protection against overheating

• Fast Switching: Optimized for high-speed switching, making it suitable for high-frequency applications

• Wide Input Voltage Range: It supports a wide range of input voltages, making it adaptable to different systems

• Low Output Drive Resistance: Allows for efficient switching with minimal loss

• Low Power Consumption: Designed to minimize power loss during operation

Specifications of NCP1392DDR2G Half-Bridge Gate Driver SMD IC

• Package Type: SOIC-8 (SMD package)

• Operating Voltage Range: 4.5V to 15V

• Output Drive Capability: Capable of driving high-side and low-side MOSFETs

• Supply Voltage: Typically operates with a single supply voltage (4.5V to 15V)

Applications of NCP1392DDR2G Half-Bridge Gate Driver SMD IC

• Inverters

• Electric Vehicles (EVs)

• Audio Amplifiers

• Motor Drives

• DC-DC Converters

Package Includes

      1 x NCP1392DDR2G Half-Bridge Gate Driver SMD IC
