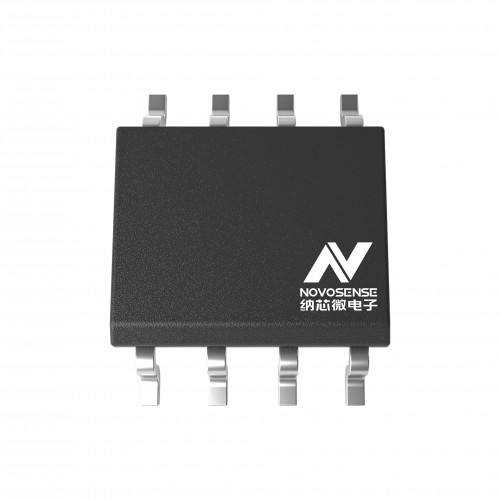

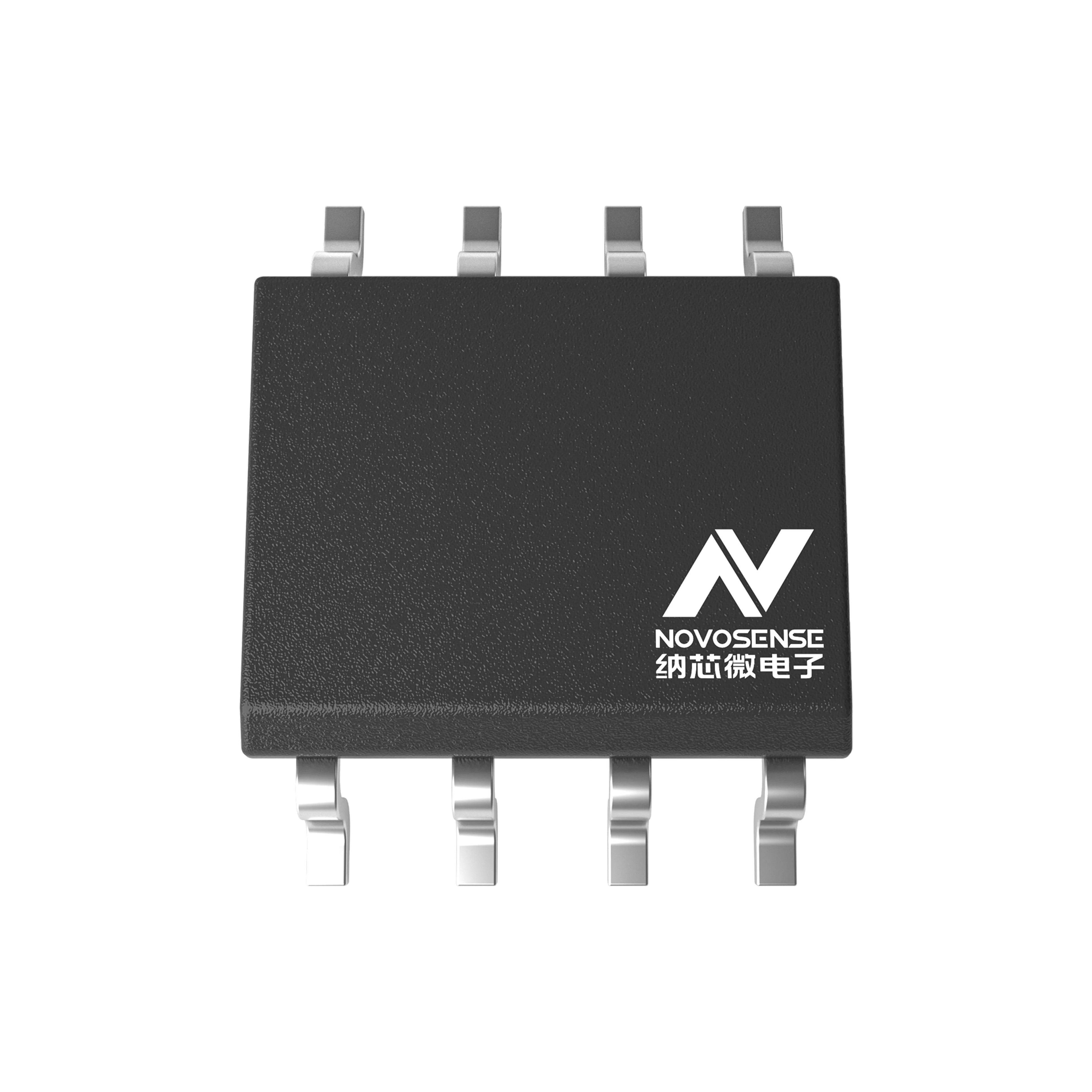

NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC

  • Stock: 12

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: NOVOSENSE
  • SKU: 10922 | DAK213

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 53.10 (inc GST)
    Rs.45.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC

NSD1025-DSPR dual-channel low-side gate driver for MOSFETs and IGBTs, with a 4.5–20 V supply range and separate enable inputs.

The NOVOSENSE NSD1025-DSPR is a dual-channel low-side gate driver for MOSFETs and IGBTs. It runs from a recommended 4.5–20 V supply and provides two non-inverting output channels for power switching designs.
Separate enable inputs let each channel be controlled on its own. CMOS- and TTL-compatible thresholds help connect the driver to common control signals. Under-voltage lockout holds the outputs low when the supply falls below its threshold, while the fast gate driver response supports switching control with a typical 21 ns propagation delay.
Use this MOSFET and IGBT driver IC in DC-DC converters, motor controllers and switched-mode power supplies. Its two channels suit designs that need separate low-side gate control, including solar and industrial power supplies.
DNA stocks NOVOSENSE components for designs that use MOSFET and IGBT devices. Explore this gate driver and related parts for power switching and conversion circuits. Check other MOSFET & IGBT that we have in stock
DNA supports Indian electronics buyers with imports and retail or bulk orders. Contact us for hard-to-find parts or related items such as STM32, Resistors and Connectors for your next build. Contact Us

Features of NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC

  • Two independent, non-inverting driver channels
  • Separate enable inputs for channel control
  • CMOS- and TTL-compatible input thresholds
  • Under-voltage lockout holds outputs low when supply voltage is low
  • Outputs can be connected in parallel for higher drive capability

Specifications of NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC

  • Recommended supply voltage: 4.5 to 20 V
  • Peak output source current: 5 A at a 200 ns pulse
  • Peak output sink current: 7 A magnitude at a 200 ns pulse
  • Typical input-to-output propagation delay: 21 ns with a 1.8 nF load
  • Operating ambient temperature: -40 to 125 °C

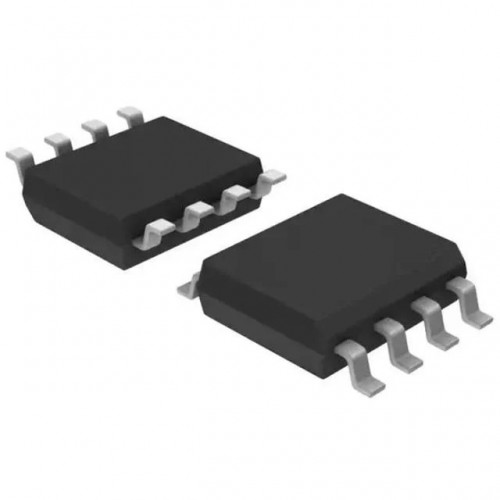

  • Package: 8-pin SOP8, 4.9 mm × 3.9 mm body
  • Input and enable pin absolute maximum voltage: -10 to 24 V

Applications of NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC

  • DC-DC converters
  • Motor controllers
  • Switched-mode power supplies for solar, server, telecom or industrial use

Related Links for NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC

Package Includes

  • 1 X NOVOSENSE NSD1025-DSPR Dual-Channel Low-Side Gate Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
