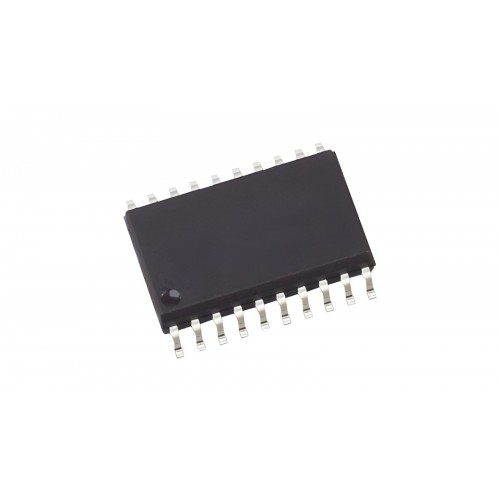

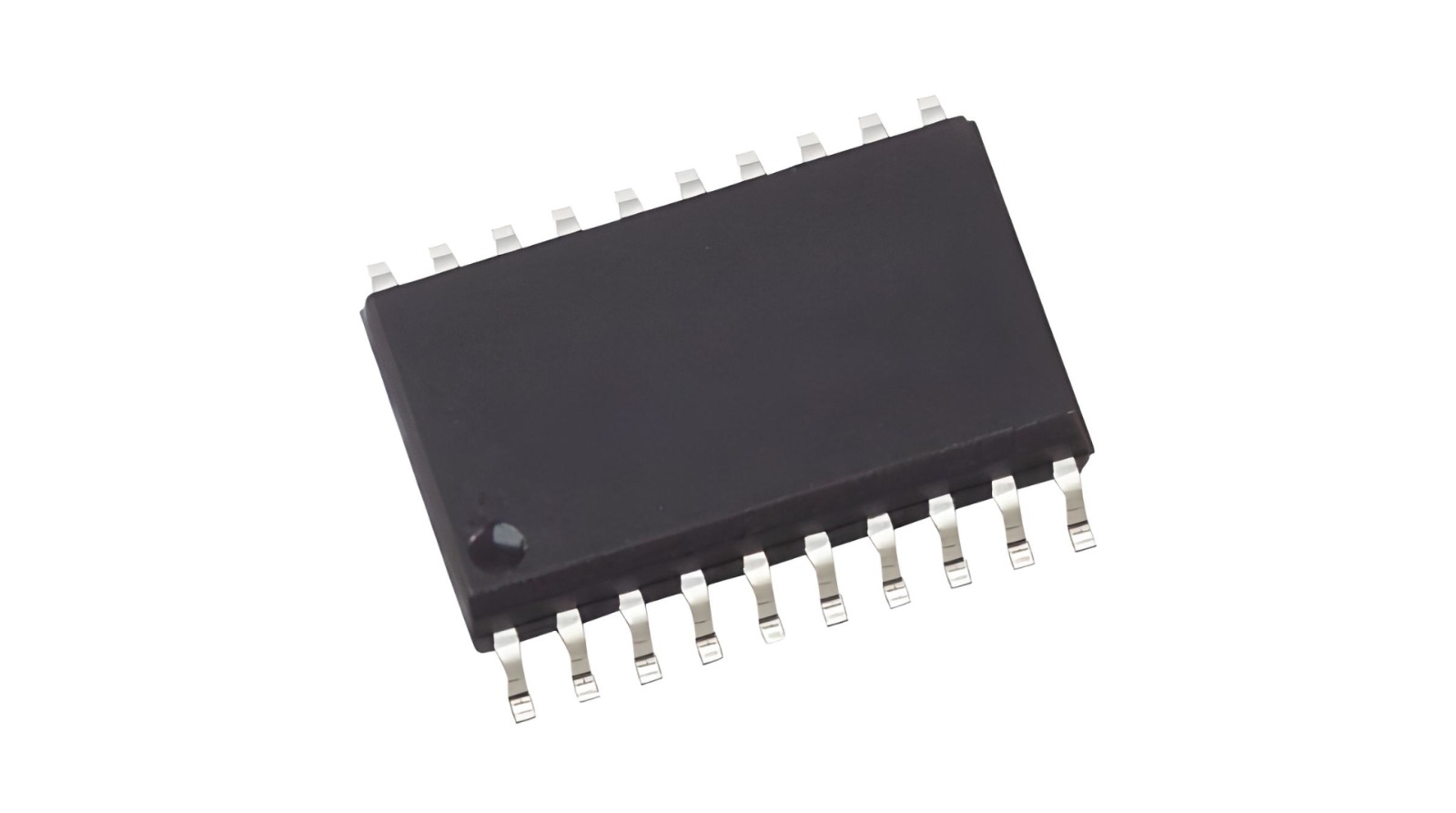

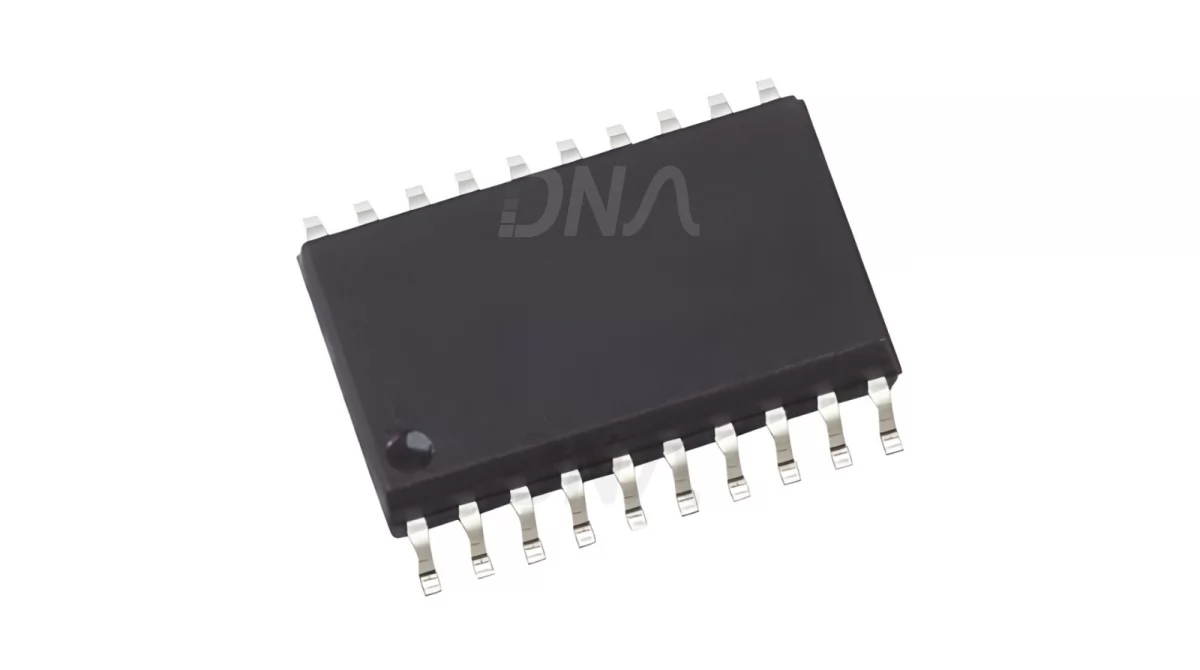

Product Images are shown for illustrative purposes only and may differ from actual product.

BTS712N1 Four Channel High side Power Switch SOP20 IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 7410 | DAF322

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 619.50 (inc GST)
    Rs.525.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

BTS712N1 Four Channel High Side Power Switch IC

BTS712N1 High Side Power Switch with 4 channels, 1.2A drive, and robust protection features.

The BTS712N1 Four Channel High Side Power Switch is designed to manage up to four independent loads efficiently. This smart power switch, packaged in SOP-20, features low on-state resistance and essential protections like overcurrent and thermal shutdown. Each channel can handle up to 1.2A, making it ideal for various applications, including resistive and inductive loads.
Incorporating advanced features, the BTS712N1 Four Channel High Side Power Switch provides short-circuit and reverse battery protection, ensuring reliable performance. It operates in high-side mode to switch the positive supply rail to the load, suitable for 12V and 24V DC grounded loads. Its diagnostic feedback capability enhances its usability in microcontroller applications.
Explore the benefits of the BTS712N1 Four Channel High Side Power Switch for replacing electromechanical relays and discrete circuits. This component is perfect for engineers and hobbyists in India looking for dependable electronic components to streamline their projects. Order your BTS712N1 today and experience its capabilities.
At DNA, we offer a comprehensive range of Power Devices from trusted manufacturers like Power Devices. Explore our collection to find the right electronic components for your needs. Check other Power Devices that we have in stock.
Are you searching for specific electronic components? At DNA, we can assist you in finding parts like Microcontrollers, Super Capacitors, Sensor Modules, and more. If you need something we don't have, we can import it for you. Contact Us.

Features of BTS712N1 Four Channel High Side Power Switch

  • Short-circuit protection
  • Over voltage protection
  • Fast demagnetization of inductive loads
  • Reverse battery protection
  • Under voltage and overvoltage shutdown with auto-restart

Specification of BTS712N1 Four Channel High Side Power Switch

  • Four independent channels
  • 1.2A maximum per channel
  • SOP-20 package

Applications of BTS712N1 Four Channel High Side Power Switch

  • Microcontroller compatible power switch
  • All types of resistive loads
  • Inductive loads
  • Capacitive loads
  • Replaces electromechanical relays

Package Includes

  • 1 X BTS712N1 Four Channel High side Power Switch SOP20 IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
