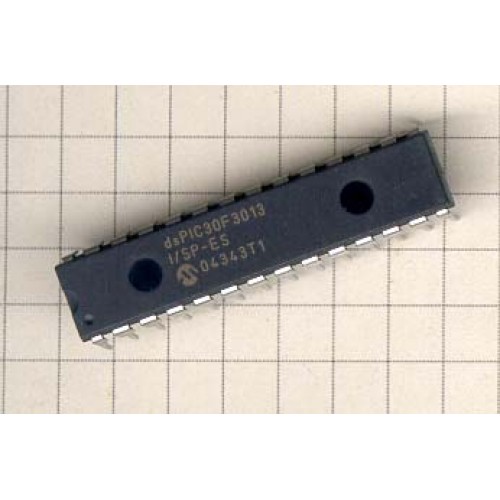

Product Images are shown for illustrative purposes only and may differ from actual product.

dsPIC30F3013

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-26
Brand: Microchip
SKU: 461 | DAA322

Rs. 590.00 (inc GST)
Rs.500.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

dsPIC30F3013

High-Performance,16-bit Digital Signal Controllers

dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F and PIC24 devices in similar packages.

Features of dsPIC30F3013

High-Performance Modified RISC CPU:

• Modified Harvard architecture

• C compiler optimized instruction set architecture

• Flexible addressing modes

• 83 base instructions

• 24-bit wide instructions, 16-bit wide data path

• Up to 24 Kbytes on-chip Flash program space

• Up to 2 Kbytes of on-chip data RAM

• Up to 1 Kbytes of nonvolatile data EEPROM

• 16 x 16-bit working register array

• Up to 30 MIPS operation:

- DC to 40 MHz external clock input

- 4 MHz - 10 MHz oscillator input with

PLL active (4x, 8x, 16x)

• Up to 21 interrupt sources:

- 8 user-selectable priority levels

- 3 external interrupt sources

- 4 processor trap sources

DSP Features:

• Dual data fetch

• Modulo and Bit-Reversed modes

• Two 40-bit wide accumulators with optionalsaturation logic

• 17-bit x 17-bit single-cycle hardware fractional/integer multiplier

• All DSP instructions are single cycle

- Multiply-Accumulate (MAC) operation

• Single-cycle ±16 shift

Peripheral Features of dsPIC30F3013

• High-current sink/source I/O pins: 25 mA/25 mA

• Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules

• 16-bit Capture input functions

• 16-bit Compare/PWM output functions

• 3-wire SPI modules (supports four Frame modes)

• I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing

• Up to two addressable UART modules with FIFO buffers

Analog Features of ds PIC30f3013

• 12-bit Analog-to-Digital Converter (ADC) with:

- 200 ksps conversion rate

- Up to 10 input channels

- Conversion available during Sleep and Idle

• Programmable Low-Voltage Detection (PLVD)

• Programmable Brown-out Reset

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
