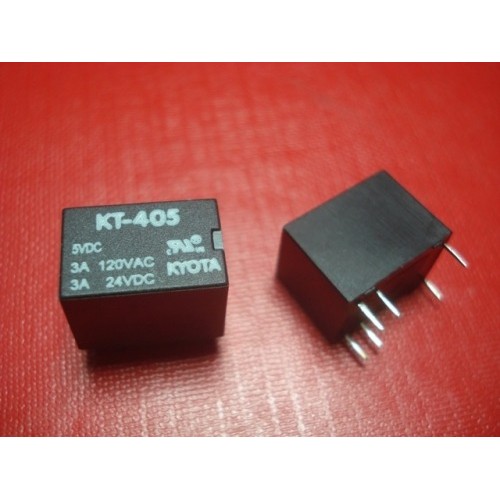

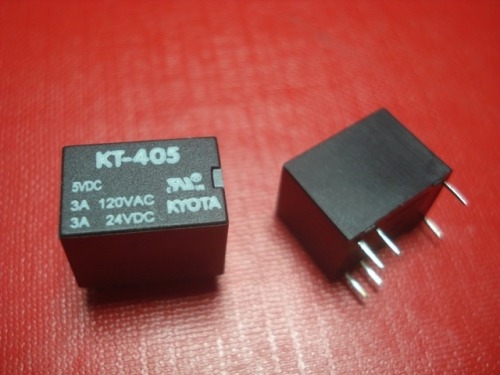

KT405 5V RELAY

KT405 5V RELAY

The KT405 5V Relay consists of a coil and a set of contacts. When a 5V DC voltage is applied to the coil, it generates a magnetic field that actuates the contacts, allowing for the switching of higher voltage and current loads. This relay is suitable for use in switching applications where isolation between the control signal and the load is required.

DNA solutions, Nashik has various types of Relay's. Check out our complete collection of  Relay's.

• Low Coil Voltage: Operates at 5V DC, making it compatible with various low voltage control circuits.


• High Current Capacity: Capable of switching high current loads, suitable for industrial and consumer applications.


• Electromechanical Operation: Provides reliable switching with physical contact actuation.


• Isolation: Electrical isolation between the control circuit and the load circuit.


• Compact Design: Small form factor for easy integration into various applications.


• Durable Construction: Built to withstand mechanical and electrical stress, ensuring long operational life.


Specifications of KT405 5V RELAY

• Coil Voltage: 5V DC


• Coil Resistance: Approximately 70 ohms (varies by model)


• Contact Configuration: SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw)


• Operating Time: Typically 10 ms


• Release Time: Typically 5 ms


• Dielectric Strength: 1000V AC between coil and contacts


• Insulation Resistance: 100 MΩ at 500V DC


• Operating Temperature Range: -40°C to +85°C


Package Includes

• 1 x KT405 5V RELAY
