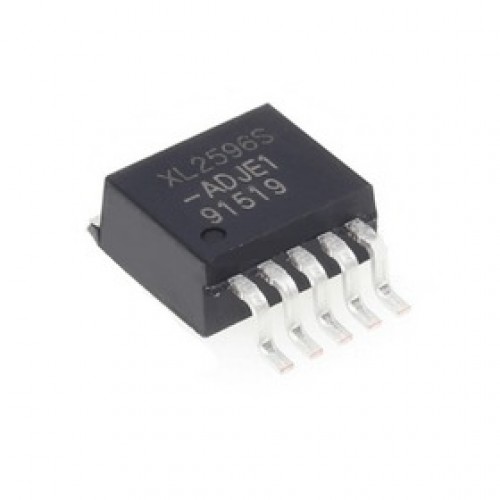

• XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

Product Images are shown for illustrative purposes only and may differ from actual product.

XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

  • Stock: 300
  • SKU: 7252 | DAF750

Availability: InStock priceValidUntil: 2025-10-01

  • Rs. 147.50 (inc GST)
    Rs.125.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

The XL2596 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring minimal external components, the controller is simple to operate and includes internal frequency compensation and a fixed frequency oscillator.

The PWM control circuit is capable of linear duty cycle adjustment from 0 to 100%. An activation function and an overcurrent protection function are integrated. When the second current limiting function occurs, the operating frequency is reduced from 150KHz to 50KHz. An internal compensation block is integrated to minimize the number of external components.

DNA solutions, Nashik has various types of IC 's. Check out our complete collection of IC 's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

  • Adjustable Output Voltage: 1.25V to 37V by external resistors
  • Wide Input Voltage Range: 4.5V to 40V
  • Output Current: Up to 3A
  • High Efficiency: Up to 90%, depending on input voltage and load
  • Switching Frequency: 150 kHz
  • Thermal Shutdown: Integrated over-temperature protection
  • Overcurrent Protection: Protects against excessive current draw
  • Low Power Consumption: Ideal for battery-powered applications
  • Short-Circuit Protection: Enhanced reliability in fault conditions
  • Soft Start Function: Reduces inrush current and ensures smooth operation
  • TO-263 Package: Surface-mount package with good thermal performance

Applications of XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

  • Adjustable power supplies
  • Battery-powered devices and portable equipment
  • Voltage regulation in embedded systems
  • Communication equipment requiring a stable, adjustable power supply
  • General DC-DC step-down conversions

    Package Includes

    • 1 x XL2596-Adj, Adjustable voltage PWM Stepdown DC/DC Buck Converter SMD TO-263 IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
