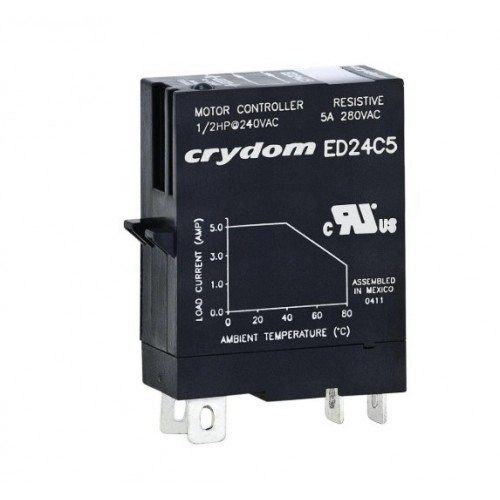

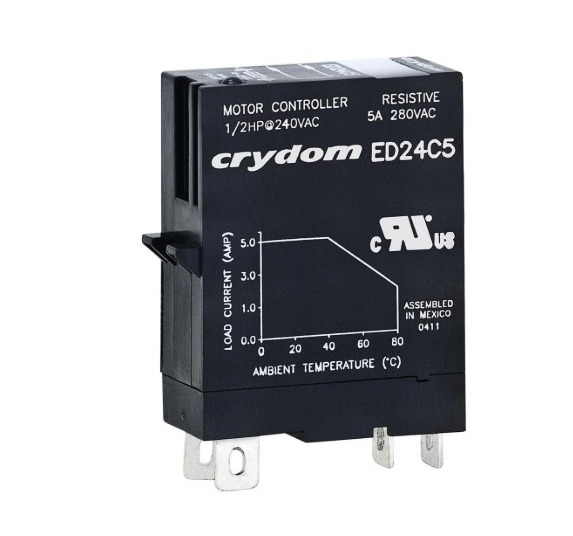

Product Images are shown for illustrative purposes only and may differ from actual product.
ED24C5 Solid State Relay SPST-NO
- Stock: Out Of Stock
- SKU: 8150 | DAH326
-
Rs. 3,226.83 (inc GST)
Rs.2,734.60 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ED24C5 Solid State Relay SPST-NO
ED24C5 Solid State Relay SPST-NO
The ED24C5 is a Single Pole Single Throw Normally Open (SPST-NO) relay with zero voltage turn-on output. It is capable of handling loads up to 5 Amps within a voltage range of 24 to 280 VAC. The relay is designed for socket able mounting, fitting standard DIN rail and PCB mountable sockets, facilitating easy integration into various systems.
DNA solutions, Nashik has various types of Relay's. Check out our complete collection of Relay's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ED24C5 Solid State Relay SPST-NO
- LED Input Status Indicator: Provides a visual indication of the relay's input status
- Zero Voltage Turn-On: Ensures the relay switches on at the zero-crossing point of the AC load voltage, reducing electrical noise and transients
- Compliance: UL 508 recognized, IEC rated, CE and RoHS compliant, ensuring adherence to international safety and environmental standards
- High Reliability: With no moving parts, the SSR offers high durability and longevity compared to traditional EMRs
Specifications of ED24C5 Solid State Relay SPST-NO
- Control Voltage Range: 18.5 to 32 VDC
- Load Voltage Range: 24 to 280 VAC
- Maximum Load Current: 5 Amps
- Operating Temperature Range: -30°C to 80°C
- Dielectric Strength (Input/Output): 3750 Vrms
- Off-State Leakage Current: 0.1 mArms
- On-State Voltage Drop: 1.1 Vpk
Applications of ED24C5 Solid State Relay SPST-NO
- Test Equipment
- Industrial Automation
- Lighting Control
- Medical Equipment
Package Includes
1 x ED24C5 Solid State Relay SPST-NO
