Product Images are shown for illustrative purposes only and may differ from actual product.

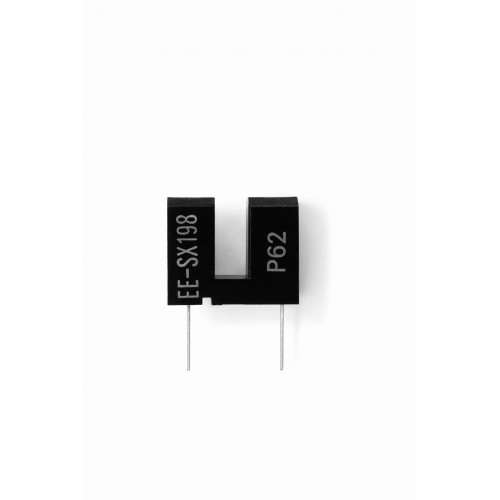

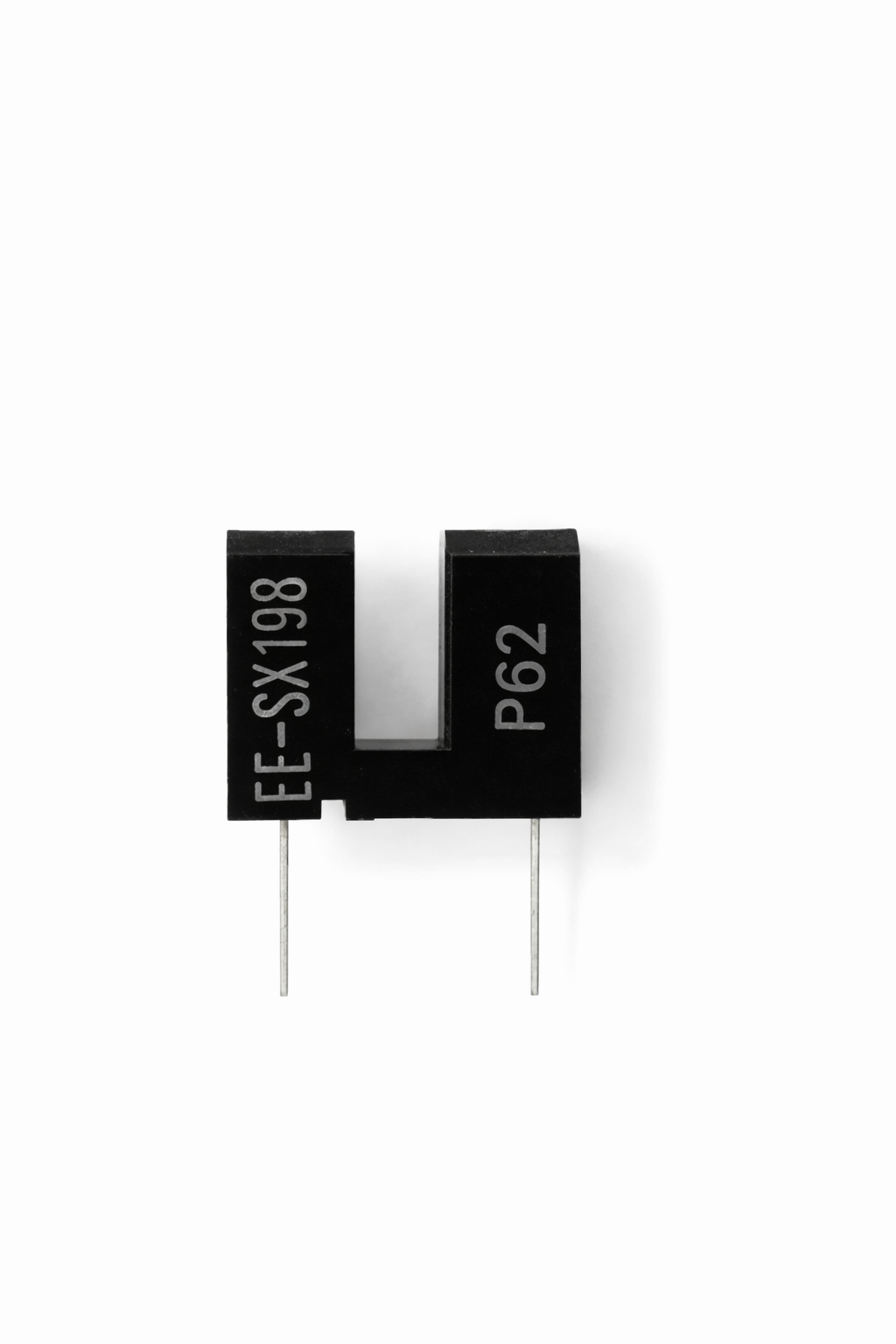

EE-SX198 Optical Switch

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-17

  • SKU: 10546 | DAJ542

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 173.02 (inc GST)
    Rs.146.63 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

EE-SX198 Optical Switch

EE-SX198 Optical Switch with 3mm slot, phototransistor output, compact DIP-4 package.

The EE-SX198 Optical Switch is designed for reliable light interruption detection. It features a 3mm slot and a phototransistor output, making it ideal for automation, medical, and consumer electronics applications. Its compact DIP-4 package ensures easy integration into various PCB designs. This robust optical switch guarantees stable performance in environments where precision is crucial.
With its through-hole mount, the EE-SX198 offers versatility in installation, allowing for seamless operation in diverse systems. The switch activates when an object passes through the slot, signaling light interruption. This functionality is essential for applications requiring accurate sensing without physical contact.
The Omron EE-SX198 is perfect for projects needing a dependable optical sensor. Its durable construction and all-purpose design make it a valuable addition to your electronic components toolkit. Explore the possibilities with this advanced optical switch.
At DNA, we provide quality components like the Omron EE-SX198 in the Proximity, Distance and Motion Sensor category. Discover reliable sensors that meet your needs. Check other "Proximity, Distance and Motion Sensor" that we have in stock.
If you are searching for specific electronic components, DNA is here to help. We can assist in finding parts like Programmers, Resistors, Inductors, Sensors, Microcontrollers, and Super Capacitors. We can also import items not currently available. Contact Us.

Features of EE-SX198 Optical Switch

  • 3mm slot for precise detection
  • Phototransistor output for reliable signaling
  • Compact DIP-4 package for easy PCB integration

Specification of EE-SX198 Optical Switch

  • Operating voltage: 5V
  • Current consumption: 10mA
  • Response time: 5μs

Applications of EE-SX198 Optical Switch

  • Automation systems
  • Medical devices
  • Consumer electronics
  • Object detection
  • Light interruption sensing

Related Links for EE-SX198 Optical Switch

Package Includes

  • 1 X EE-SX198 Optical Switch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
