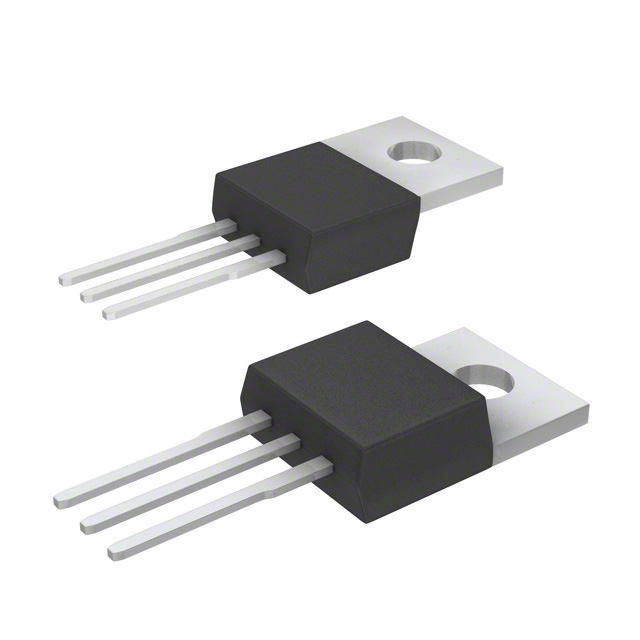

TOP224YN Power Integrations Off Line Switcher IC

TOP224YN Power Integrations Off Line Switcher IC

The TOP224YN is a member of the TOP Switch-II family, integrating a high-voltage power MOSFET, PWM controller, fault protection, and startup circuitry in a single TO-220 package. Designed for efficient offline switch-mode power supplies, it delivers low component count and high performance with minimal heat dissipation. The IC enables cost-effective, compact power solutions for a wide input voltage range.

DNA solutions, Nashik has various types of Switcher IC's. Check out our complete collection of Switcher IC's.

• Integrated 700V MOSFET with PWM control

• Auto-restart for output short-circuit protection

• Thermal shutdown with hysteresis

• Built-in soft-start function

• Low EMI emissions

• High efficiency and low standby power

Specifications of TOP224YN Power Integrations Off Line Switcher IC

• Input Voltage Range: 85–265 VAC

• Output Power: Up to 30W

• Switching Frequency: 100 kHz

• Drain Voltage: 700V

• Operating Temperature: –40°C to +150°C

Applications of TOP224YN Power Integrations Off Line Switcher IC

• LED drivers and display power modules

• Consumer electronics

• Set-top boxes and cable modems

• Industrial control power supplies

Package Includes

      1 x TOP224YN Power Integrations Off Line Switcher IC
