  • 32.768KHZ CRYSTAL

Product Images are shown for illustrative purposes only and may differ from actual product.

32.768KHZ CRYSTAL

  • Price :

    Rs.9.44 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

3.579MHZ CRYSTAL

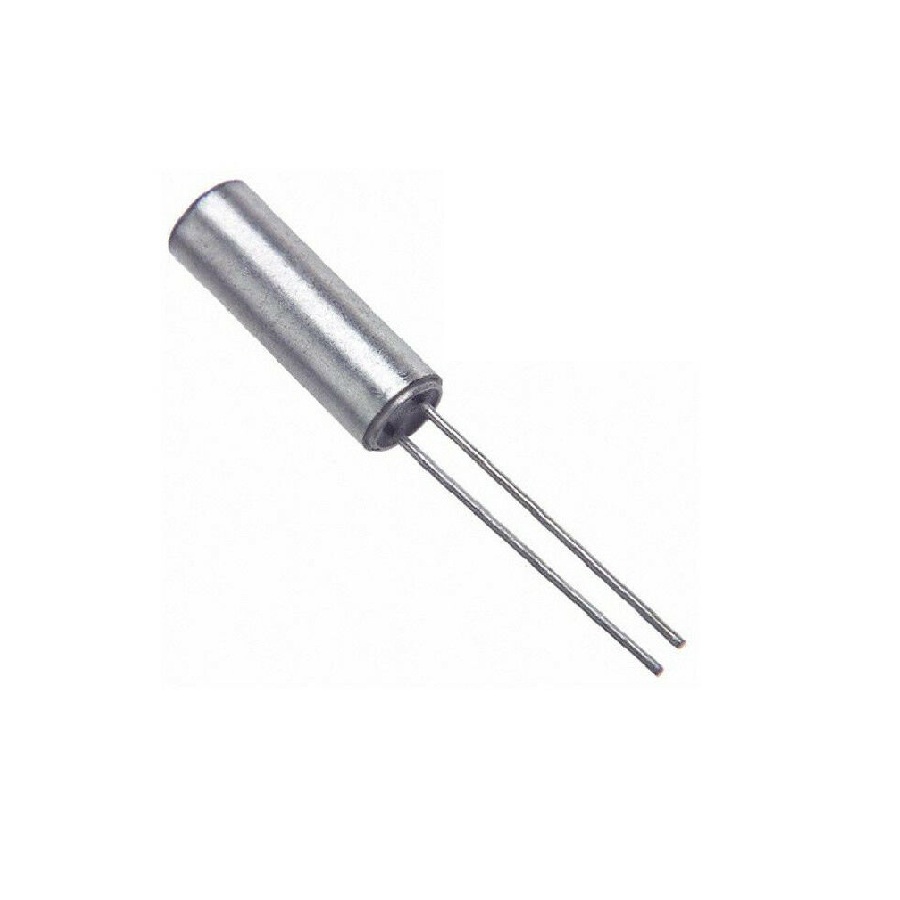

 This is a 32.768KHZ Crystal. This is a low cost crystal oscillator with oscillation frequency of 32.768KHZ. Crystal are normally required to provide clock pulses to your microcontroller or other IC's which require external clock source.


An oscillator crystal has two electrically conductive plates, with a slice or tuning fork of quartz crystal sandwiched between them. The crystal oscillator circuit sustains oscillation by taking a voltage signal from the quartz resonator, amplifying it, and feeding it back to the resonator. Quartz has the further advantage that its elastic constants and its size change in such a way that the frequency dependence on temperature can be very low.


Features:
          •  Crystal Case Type: Metal Can
          •  Crystal Mounting Type: Through Hole
          •  Frequency: 32.768KHZ
          •  Frequency Stability: ± 50ppm
          •  Frequency Tolerance: ± 30ppm
          •  Load Capacitance: 10 pF
          •  No. of Pins: 2
          •  Operating Temperature Max: 70 °C
          •  Operating Temperature Min: -10 °C
          •  Operating Temperature Range: -10°C to +70°C
