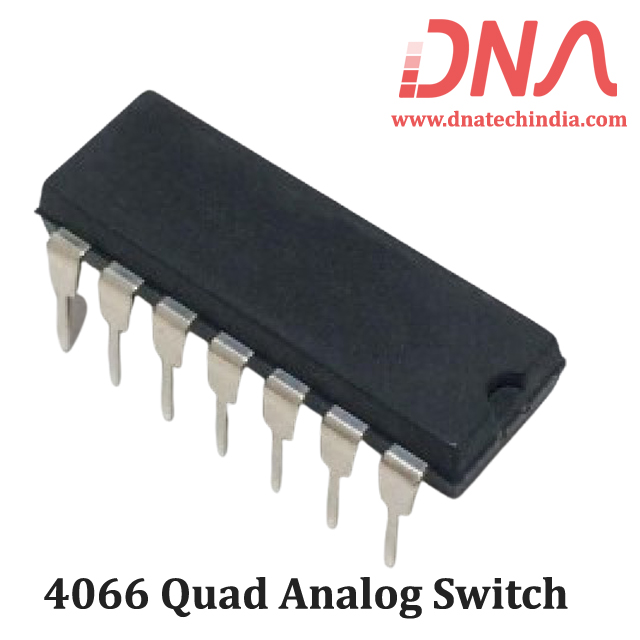

4066 Quad Analog Switch

CD4066B Quad Bilateral Switch for analog/digital signal transmission with low on-state resistance.

The CD4066 Quad Analog Switch is designed for efficient transmission and multiplexing of analog and digital signals. This component features four independent bilateral switches, which provide peak input-signal voltage swings equal to the full supply voltage. The CD4066 maintains a low and stable on-state resistance, ensuring reliable performance across the full input signal range. It is a perfect choice for applications requiring consistent signal integrity.

Ideal for both commercial and DIY projects, the CD4066 Quad Analog Switch is compatible with the CD4016B while offering enhanced features. Its design allows for seamless integration into various electronic circuits, making it a vital component in signal processing tasks. Whether you're working on audio systems, communication devices, or control applications, this switch ensures effective signal management.

Available at DNA, the CD4066 is perfect for Indian customers looking for quality electronic components. Explore our extensive collection of 4000 Series ICs for more options to meet your project needs.

Explore the reliability of the 4000 Series IC's at DNA. The CD4066 from a trusted Manufacturer ensures high performance in electronic applications. Check other 4000 Series IC's that we have in stock.

If you're searching for specific electronic components, DNA can assist. We offer a wide range of parts, including Analog ICs, Resistors, Sensor Modules, and more. If you can't find what you need, feel free to reach out. We can import parts for you and support both retail and bulk orders. Contact Us.

Features of 4066 Quad Analog Switch

• Quad bilateral switches
• Independent control for each switch
• Low and stable on-state resistance
• Compatible with CD4016B
• Suitable for analog and digital signals

Specification of 4066 Quad Analog Switch

• Supply voltage: up to 15V
• On-state resistance: low
• Signal input range: full supply voltage
• Package type: DIP
• Operating temperature: -55 to 125°C

Applications of 4066 Quad Analog Switch

• Signal multiplexing
• Audio signal routing
• Communication devices
• Control circuits
• Sample-and-hold applications

Related Links for 4066 Quad Analog Switch

• Other Products from 4000 Series IC's Category

Package Includes

• 1 X 4066 Quad Analog Switch
