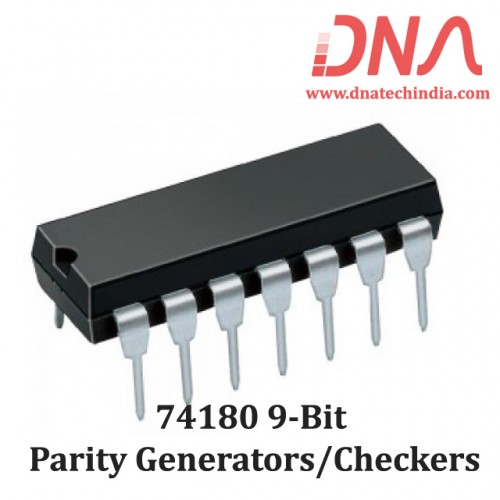

74180 9-Bit Parity Generators/Checkers

These universal 9-bit (8 data bits plus 1 parity bit) parity generators/checkers feature odd/even outputs and control inputs to facilitate operation in either odd or even parity applications. Depending on whether even or odd parity is being generated or checked, the even or odd input can be utilized as the parity or 9th-bit input. The word-length capability is easily expanded by cascading. Input buffers are provided so that each data input represents only one normalized series 54/74 load. A full fan-out to 10 normalized series 54/74 loads is available from each of the outputs at a low logic level. A fan-out to 20 normalized loads is provided at a high logic level to facilitate the connection of unused inputs to used inputs.

Features of 74180

• Supply Voltage 7V

• Input Voltage 5.5V

• Operating Free Air Temperature Range 0^oC to a 70^oC

• Storage Temperature Range b 65^oC to a 150^oC
