Product Images are shown for illustrative purposes only and may differ from actual product.

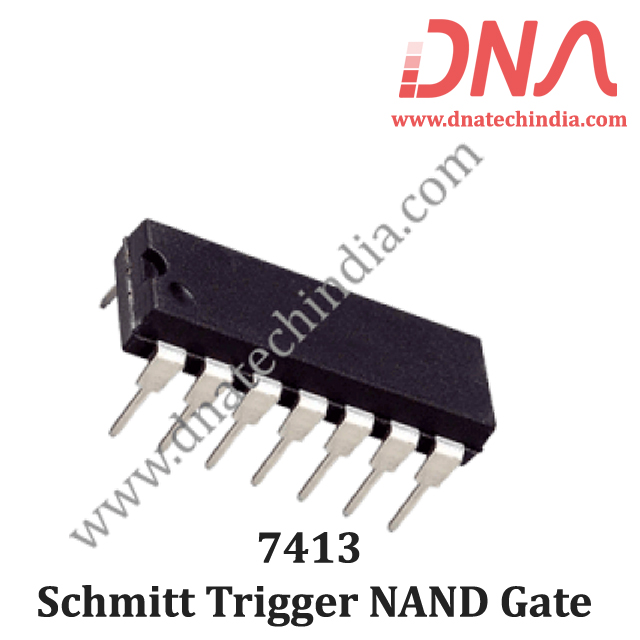

7413 Schmitt Trigger NAND Gate


Write a review | 2 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-10-17

  • SKU: 71 | DAA272

Availability: InStock priceValidUntil: 2026-10-17

  • Rs. 29.50 (inc GST)
    Rs.25.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

7413 Dual Schmitt Trigger 4-Input NAND Gate IC

7413 Dual Schmitt Trigger NAND Gate with 5V to 7V supply voltage and 0°C to +70°C operating temperature.

The 7413 Dual Schmitt Trigger 4-Input NAND Gate IC is essential for digital circuit design. This device features four independent gates that execute the NAND function efficiently. With a supply voltage range of 5V to 7V and an operating temperature from 0°C to +70°C, it is suitable for various applications in electronics. The 7413 is ideal for creating reliable logic circuits in consumer electronics and computing devices.

Engineered for performance, the 7413 Dual Schmitt Trigger 4-Input NAND Gate IC ensures stable operation even in noisy environments. Its robust design supports a wide input voltage, making it an excellent choice for diverse projects. Whether you are a hobbyist or a professional, this component delivers reliability and efficiency.

Explore the versatility of the 7413 in applications like signal conditioning, timing circuits, and more. This component is part of the renowned 7400 Series IC's, known for their durability and performance in the electronics industry.

At DNA, we offer high-quality components from the 7400 Series IC's. Explore the 7413 Dual Schmitt Trigger and discover its potential in your projects. Check other "7400 Series IC's" that we have in stock.

If you are looking for specific electronic components, DNA is here to help. We can import parts not available in our stock and support both retail and bulk orders. Check our offerings like Development Modules, Sensor Modules, Microcontrollers, and more. Contact Us.

Features of 7413 Dual Schmitt Trigger 4-Input NAND Gate IC

  • Dual Schmitt trigger design
  • 4-input NAND functionality
  • Wide supply voltage range 5V to 7V
  • Temperature range from 0°C to +70°C
  • Robust and reliable performance

Specification of 7413 Dual Schmitt Trigger 4-Input NAND Gate IC

  • Supply Voltage: 5V to 7V
  • Input Voltage: 5V to 7V
  • Operating Temperature: 0°C to +70°C
  • Storage Temperature: -65°C to +150°C

Applications of 7413 Dual Schmitt Trigger 4-Input NAND Gate IC

  • Signal conditioning
  • Timing circuits
  • Logic circuit design
  • Digital electronics
  • Consumer electronics

Related Links for 7413 Dual Schmitt Trigger 4-Input NAND Gate IC

Package Includes

  • 1 X 7413 Dual Schmitt Trigger 4-Input NAND Gate IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
