Product Images are shown for illustrative purposes only and may differ from actual product.

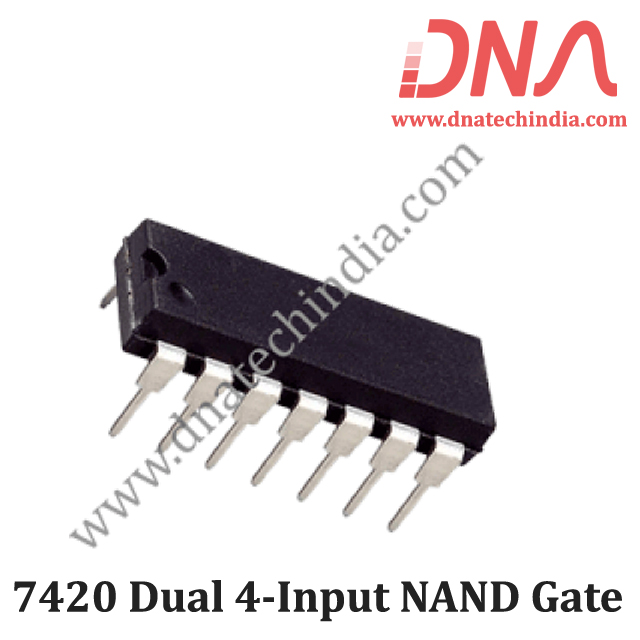

7420 Dual 4-Input NAND Gate


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-12

  • SKU: 72 | DAA278

Availability: NotInStock priceValidUntil: 2026-10-12

  • Rs. 17.70 (inc GST)
    Rs.15.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

7420 Dual 4-Input NAND Gate IC

7420 Dual 4-Input NAND Gate IC for digital circuits; Supply Voltage 5 to 7V; Operating Temperature 0°C to +70°C.

The 7420 Dual 4-Input NAND Gate IC is essential for digital circuit design. This device features two independent gates that perform the NAND logic function efficiently. It operates within a supply voltage range of 5 to 7V, making it suitable for various applications in electronics. The 7420 Dual 4-Input NAND Gate IC is perfect for creating complex logic systems and is widely used in educational projects and professional designs.

With a temperature range from 0°C to +70°C, it suits most environments. The 7420 Dual 4-Input NAND Gate IC is reliable for both personal and commercial projects. You can find this component in our collection of 7400 Series IC's which includes various other logic gates and components.

Explore the versatility of the 7420 Dual 4-Input NAND Gate IC in your next project. It simplifies circuit design and enhances performance, catering to the needs of Indian electronics enthusiasts. You can buy it online or visit our local shop in Nashik for immediate purchase.

At DNA, we offer a wide range of 7400 Series IC's including the reliable 7420 Dual 4-Input NAND Gate IC. Explore our collection to find quality components for your projects. Check other 7400 Series IC's that we have in stock.

If you need more electronic components, reach out to us. We can help you find parts like Inductors, Connectors, LCDs, and MOSFETs. We also support imports if certain items are unavailable. Contact Us.

Features of 7420 Dual 4-Input NAND Gate IC

  • Dual 4-input NAND gates
  • Operates at 5 to 7V supply voltage
  • Suitable for temperature range 0°C to +70°C.

Specification of 7420 Dual 4-Input NAND Gate IC

  • Supply Voltage: 5 to 7V
  • Input Voltage: 5 to 7V
  • Storage Temperature: -65°C to +150°C.

Applications of 7420 Dual 4-Input NAND Gate IC

  • Digital circuit design
  • Logic systems
  • Educational projects
  • Professional electronics.

Package Includes

  • 1 X 7420 Dual 4-Input NAND Gate IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
