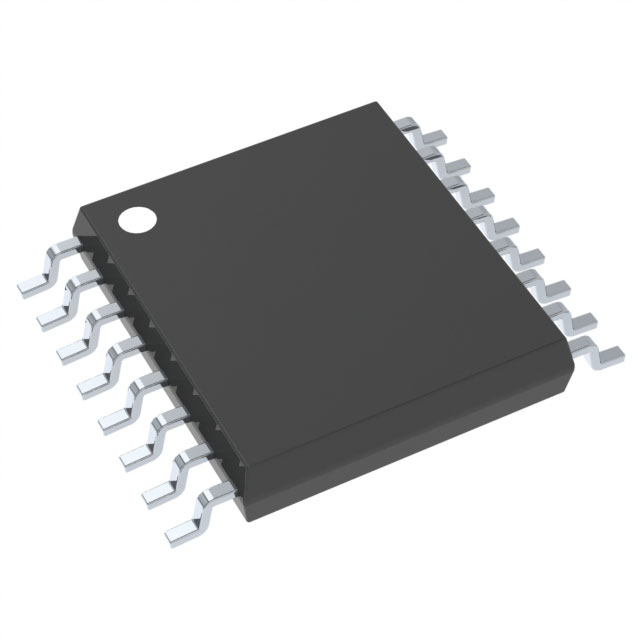

TLC5916IPWR LED DRIVER SMD IC

TLC5916IPWR LED Driver SMD IC

TLC5916IPWR LED Driver IC for low-side LED driving, supports 8 LEDs, and operates from 3V to 5.5V.

The TLC5916IPWR LED Driver SMD IC is an efficient solution for driving LEDs in various applications. It features a constant current output that maintains consistent brightness across up to 8 LEDs. The integrated serial interface with shift register allows for easy cascading of multiple devices, making it suitable for complex lighting setups. This driver operates within a supply voltage range of 3V to 5.5V and supports an output voltage of up to 17V, ensuring versatility in different projects.

In addition to its robust performance, the TLC5916IPWR LED Driver SMD IC includes thermal shutdown protection and open LED detection features. These enhancements provide reliability and safety for your LED applications. Whether for LED displays, indicator lighting, or backlighting for LCD panels, this driver meets the demand for both industrial and consumer electronics.

Explore the capabilities of the TLC5916IPWR LED Driver SMD IC to create stunning multi-color LED effects and bar graph displays. Its compact TSSOP-16 package makes it easy to integrate into your designs. Ideal for engineers and hobbyists alike, this IC is a valuable addition to any LED project.

Discover reliable solutions from DNA, featuring the Texas Instruments brand in the Power Devices category. Explore our range of LED Driver ICs for your electronic projects. Check other Power Devices that we have in stock.

If you require specific electronic components that are hard to find, reach out to us at DNA. We can import parts and support your needs in retail and bulk. Explore related items such as SMPS, Microcontroller, Power Supply, Hongfa Relay, DC to DC Converter Module, and Connectors. Contact Us.

Features of TLC5916IPWR LED Driver SMD IC

• Drives up to 8 LEDs with constant current output
• Integrated serial interface: shift register with latch
• Supports cascading multiple devices
• Low-side current sinking driver
• Thermal shutdown and open LED detection

Specification of TLC5916IPWR LED Driver SMD IC

• Number of Channels: 8
• Output Current: Up to 120 mA per channel
• Supply Voltage Range: 3V to 5.5V
• Output Voltage Range: Up to 17V
• Interface Type: Serial-in, parallel-out
• Package: TSSOP-16 (PW)
• Operating Temperature Range: -40°C to +85°C

Applications of TLC5916IPWR LED Driver SMD IC

• LED displays and signage
• Indicator lighting for industrial and consumer electronics
• Backlighting for LCD panels
• Bar graph displays
• Multi-color LED effects

Package Includes

• 1 X TLC5916IPWR LED Driver SMD IC
