74LS08 Quad 2-Input AND Gate DIP IC

74LS08 Quad 2-Input AND Gate DIP IC

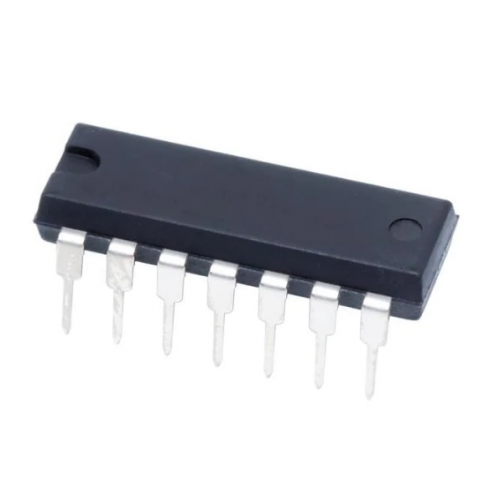

The 74LS08 is a TTL logic IC containing four independent 2-input AND gates. It is built with Low Power Schottky (LS) technology, offering high speed and low power consumption. Housed in a DIP-14 package, it is ideal for general-purpose digital logic circuits where logical AND operation is required.

DNA solutions, Nashik has various types of Gate IC's. Check out our complete collection of Gate IC's.

• Contains four independent 2-input AND gates

• TTL (Transistor-Transistor Logic) compatible

• Fast switching speed with low power consumption

• Wide supply voltage range: 4.75V to 5.25V (typically 5V)

• Outputs capable of driving 10 LS-TTL loads

• Noise margin: 0.4V (low), 2.4V (high)

Specifications of 74LS08 Quad 2-Input AND Gate DIP IC

• Supply Voltage: 4.75V – 5.25V (typically 5V)

• Input Voltage HIGH (VIH): Min 2V

• Input Voltage LOW (VIL): Max 0.8V

• Output Voltage HIGH (VOH): Min 2.7V

• Output Voltage LOW (VOL): Max 0.4V

• Typical Propagation Delay: ~10ns

• Operating Temperature Range: 0°C to +70°C

Applications of 74LS08 Quad 2-Input AND Gate DIP IC

• Digital logic circuits

• Control systems

• Signal gating

• Embedded systems

• Combination logic design

• Prototyping and educational kits

Package Includes

      1 x 74LS08 Quad 2-Input AND Gate DIP IC
