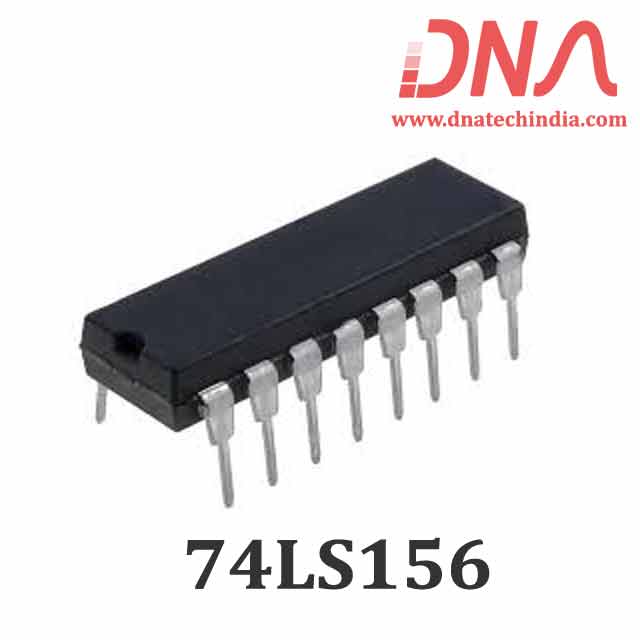

• 74LS156 Dual 2/4 Demultiplexer

Product Images are shown for illustrative purposes only and may differ from actual product.

74LS156 Dual 2/4 Demultiplexer

  • Stock: 2
  • SKU: 2542 | DAA277
  • Rs. 82.60 (inc GST)
    Rs.70.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

74LS156 Dual 2/4 Demultiplexer

74LS156 Dual 2/4 Demultiplexer

These TTL circuits feature dual 1-line-to-4-line demultiplexers with individual strobes and common binary-address inputs in a single 16-pin package. When both sections are enabled by the strobes, the common address inputs sequentially select and route associated input data to the appropriate output of each section. The individual strobes permit activating or inhibiting each of the 4-bit sections as desired. Data applied to input C1 is inverted at its outputs and data applied at C2 is true through its outputs. The inverter following the C1 data input permits use as a 3-to-8- line decoder, or 1-to-8-line demultiplexer, without external gating. Input clamping diodes are provided on these circuits to minimize transmission-line effects and simplify system design.

DNA solutions,Nashik has various types of Power IC's. Check out our complete collection of  Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of 74LS156 Dual 2/4 Demultiplexer

  • Individual strobes simplify cascading for decoding or demultiplexing larger words
  • Input clamping diodes simplify system design

Package Includes

1 x 74LS156 Dual 2/4 Demultiplexer.

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
