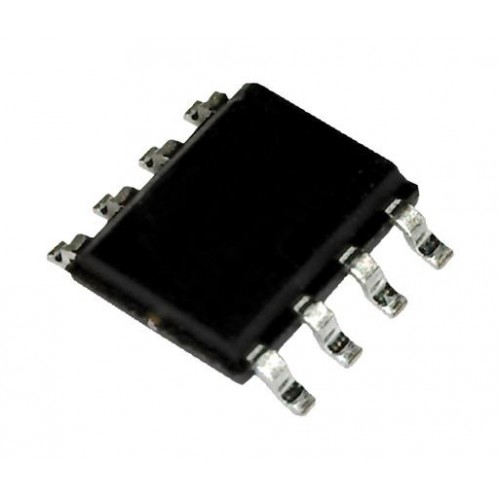

• LM311 High-Speed Voltage Analog Comparator 8-SOIC IC

Product Images are shown for illustrative purposes only and may differ from actual product.

LM311 High-Speed Voltage Analog Comparator 8-SOIC IC

  • Stock: 10
  • SKU: 5097 | DAG859
  • Rs. 20.77 (inc GST)
    Rs.17.60 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM311 High-Speed Voltage Analog Comparator 8-SOIC IC

LM311 High-Speed Voltage Analog Comparator 8SOIC IC

The LM311 is a single comparator IC that offers differential input and an open-collector output. It is ideal for applications that need precise voltage level detection and can interface with various digital and analog systems. The open-collector output allows for flexible interfacing with different voltage levels, making it useful in multi-system integration. The LM311 High-Speed Voltage Comparator in an 8-SOIC package is an analog comparator IC designed for fast and precise voltage level detection. Its open-collector output configuration enables flexible interfacing with other circuits and allows it to operate with different output voltage levels by using an external pull-up resistor. This versatility makes it compatible with both TTL and CMOS logic levels.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM311 High-Speed Voltage Analog Comparator 8SOIC IC

  • High Speed: Fast response time, with typical propagation delay of 200 ns.
  • Wide Input Voltage Range: Operates over a broad range of input voltages, supporting various power supplies.
  • Single or Dual Supply Operation: Supports single supply (up to 36V) or dual supplies (±18V), enhancing versatility.
  • Open-Collector Output: Allows connection to higher voltages, enabling flexible interfacing.
  • Low Input Offset Voltage: Ensures accurate comparison of input voltages.
  • TTL and CMOS Compatible: Suitable for a wide range of digital systems.

Specifications of LM311 High-Speed Voltage Analog Comparator 8SOIC IC

  • Input Voltage Range: 0V to Vcc -1.5V in single-supply mode.
  • Supply Voltage: 5V to 36V (single supply) or ±18V (dual supply).
  • Input Offset Voltage: Typically ±2 mV, ensuring precise comparison.
  • Input Bias Current: 100 nA typical, which supports low-power applications.
  • Output Saturation Voltage: Typically 0.2V at 4 mA.
  • Output Sink Current: Up to 50 mA, useful for driving LEDs or small relays.

    Package Includes

    • 1 x LM311 High-Speed Voltage Analog Comparator 8SOIC IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
