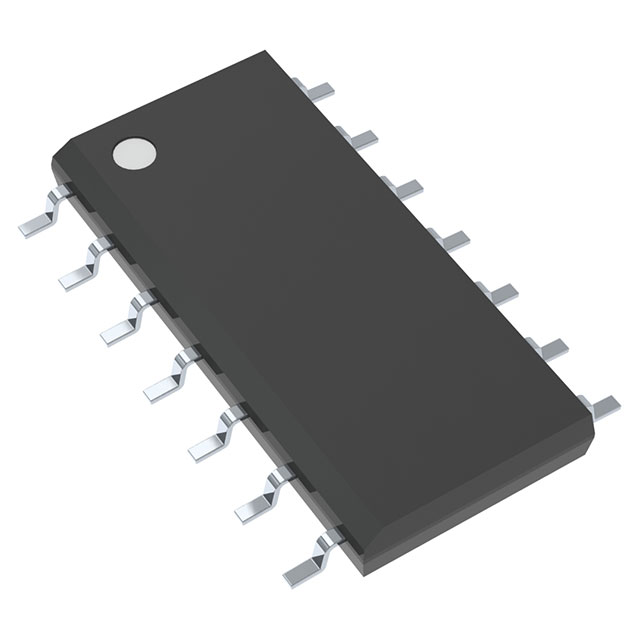

LM339DG Analog Comparators SMD IC

LM339DG Analog Comparators SMD IC

LM339DG SMD IC for analog signal processing with 4 comparators, low offset voltage, and open collector outputs.

The LM339DG Analog Comparators SMD IC is a quad differential comparator designed for various applications in control systems and measurement instruments. It operates efficiently from a single power supply with a voltage range of 2V to 36V. The LM339DG features low input offset voltage, making it ideal for accurate voltage sensing and analog signal processing. Its compact SOIC-14 package ensures easy integration into your designs.

With four independent comparators, the LM339DG Analog Comparators SMD IC provides flexibility for applications such as zero-crossing detectors and signal threshold monitoring. The open collector output allows for wired-AND connections, enhancing versatility in circuit design. This IC is perfect for users needing reliable performance in compact spaces.

Choose the LM339DG for your next project and experience dependable operation in analog-to-digital converters and oscillators. This product is well-suited for engineers looking for high-quality comparator solutions.

Explore the range of high-quality OPAMP products at DNA. The LM339DG Analog Comparators SMD IC is designed to meet your analog signal processing needs. Check other OPAMP that we have in stock.

If you need specific electronic components, reach out to us. We can help you find Microcontrollers, Sensor Modules, IGBTs, and more. We also support imports for hard-to-find parts and offer retail and bulk options. Contact Us.

Features of LM339DG Analog Comparators SMD IC

• Four independent comparators in a single package
• Wide supply voltage range: 2V to 36V
• Low input offset voltage
• Open collector output for wired AND connection
• Low supply current drain independent of supply voltage
• Surface mount SOIC-14 package

Specification of LM339DG Analog Comparators SMD IC

• Number of Comparators: 4
• Input Offset Voltage: Max ±5mV
• Operating Voltage Range: 2V to 36V (or ±1V to ±18V)
• Input Bias Current: Max 250nA
• Output Type: Open Collector
• Package Type: SOIC-14 (SMD)

Applications of LM339DG Analog Comparators SMD IC

• Zero-crossing detectors
• Voltage level detectors
• Oscillators and waveform generators
• Analog-to-digital converters
• Signal threshold monitoring

Related Links for LM339DG Analog Comparators SMD IC

• Other Products from OPAMP Category

Package Includes

• 1 X LM339DG Analog Comparators SMD IC
