XL6009 Boost Module


Write a review | 1 reviews

  • Stock: 7

    Availability: InStock priceValidUntil: 2026-10-15

  • Brand: Generic
  • SKU: 519 | DAB376

Availability: InStock priceValidUntil: 2026-10-15

  • Rs. 82.60 (inc GST)
    Rs.70.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

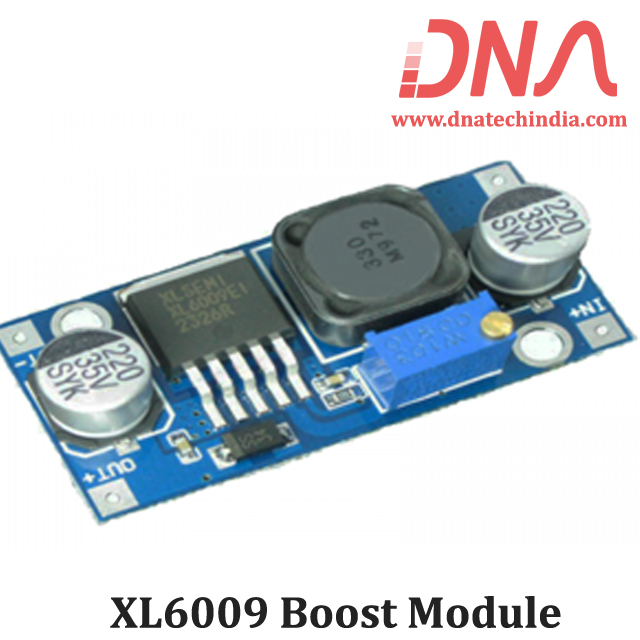

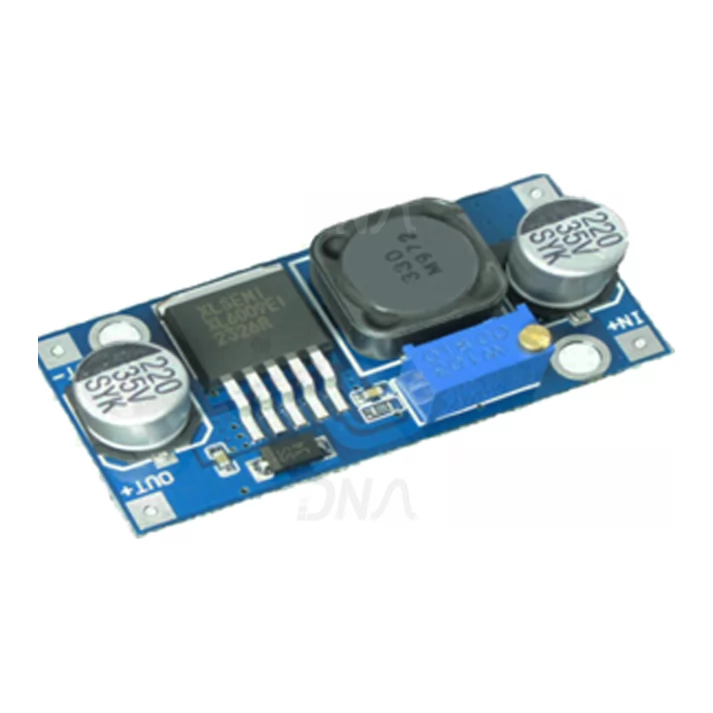

XL6009 Boost Module

XL6009 Boost Module adjusts output voltage 5V-35V, 4A max current, 94% efficiency.

The XL6009 Boost Module is an efficient power supply solution tailored for Indian electronics projects. It steps up input voltages from 3V to 32V, delivering a maximum output of 35V. With a robust 4 Ampere current capacity and a 94% efficiency rating, the XL6009 Boost Module minimizes energy loss, ensuring reliable performance in various applications. Its 400KHz switching frequency allows for smaller filter capacitors, reducing output voltage ripple.

Engineered with the XL6009E1 chip, this module is ideal for stable voltage regulation in powering sensors, microcontrollers, and other electronic devices. The XL6009 Boost Module excels in both hobbyist and professional projects, providing the reliability needed for electronic designs. Its working temperature range of -40℃ to +85℃ makes it suitable for indoor and outdoor applications.

Explore the versatility of the XL6009 Boost Module for your power supply needs. Whether you're enhancing existing projects or developing new ones, this module offers the efficiency and performance essential for successful electronics development.

At DNA, we offer the XL6009 Boost Module from a trusted manufacturer in the DC to DC Converter Modules category. Explore our range of reliable products to meet your power supply needs. Check other 'DC to DC Converter Modules' that we have in stock.

If you're an Indian electronics buyer and can't find certain parts, reach out to us. We can import items if they're unavailable and support you in retail as well as bulk orders. Don't forget to check out related components like LCDs, Inductors, MOSFETs, and more. Contact Us.

Features of XL6009 Boost Module

  • Adjustable output voltage 5V-35V
  • 4A maximum current
  • 94% efficiency
  • High switching frequency of 400KHz
  • Wide temperature range -40℃ to +85℃

Specification of XL6009 Boost Module

  • Input voltage range: 3V-32V
  • Output voltage range: 5V-35V
  • Maximum current: 4A
  • Efficiency: 94%
  • Switching frequency: 400KHz

Applications of XL6009 Boost Module

  • Powering sensors
  • Microcontroller applications
  • LED lighting projects
  • Battery-powered devices
  • Robotics and automation

Related Links for XL6009 Boost Module

Package Includes

  • 1 X XL6009 Boost Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
