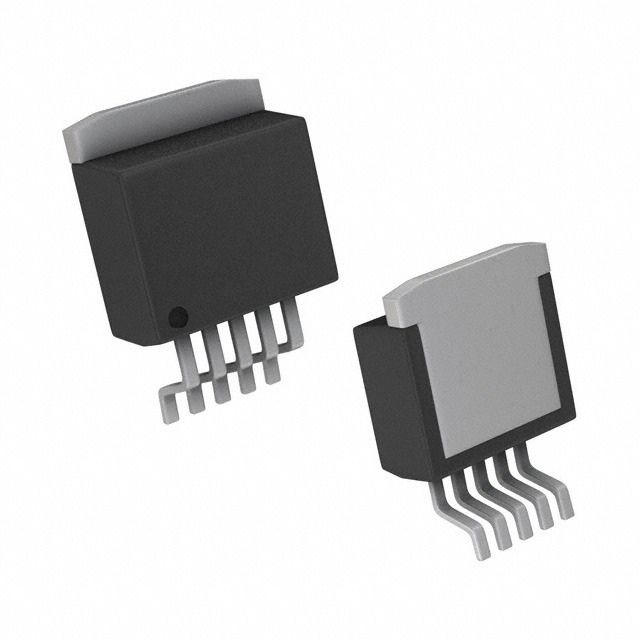

• XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

  • Stock: 150
  • SKU: 7249 | DAF747

Availability: InStock priceValidUntil: 2025-10-13

  • Rs. 147.50 (inc GST)
    Rs.125.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

The XL2596 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring minimal external components, the controller is simple to operate and includes internal frequency compensation and a fixed frequency oscillator.
The PWM control circuit is capable of linear duty cycle adjustment from 0 to 100%. An activation function and an overcurrent protection function are integrated. When the second current limiting function occurs, the operating frequency is reduced from 150KHz to 50KHz. An internal compensation block is integrated to minimize the number of external components.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

  • Input Voltage: 4.5V to 40V
  • Output Voltage: 3.3V (fixed)
  • Output Current: 3A (max)
  • Efficiency: Up to 92%
  • Switching Frequency: 150kHz
  • Operating Temperature Range: -40°C to +125°C
  • Thermal Shutdown: Yes
  • Overcurrent Protection: Yes
  • Package Type: TO-263 (5-Lead)

Applications of XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

  • Battery-powered devices
  • Car chargers and adapters
  • Industrial power supplies
  • Consumer electronics
  • LED drivers
  • Voltage regulators for microcontrollers or embedded systems

    Package Includes

    • 1 x XL2596 3.3Volts PWM Stepdown DC/DC Buck Converter IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
